Walter

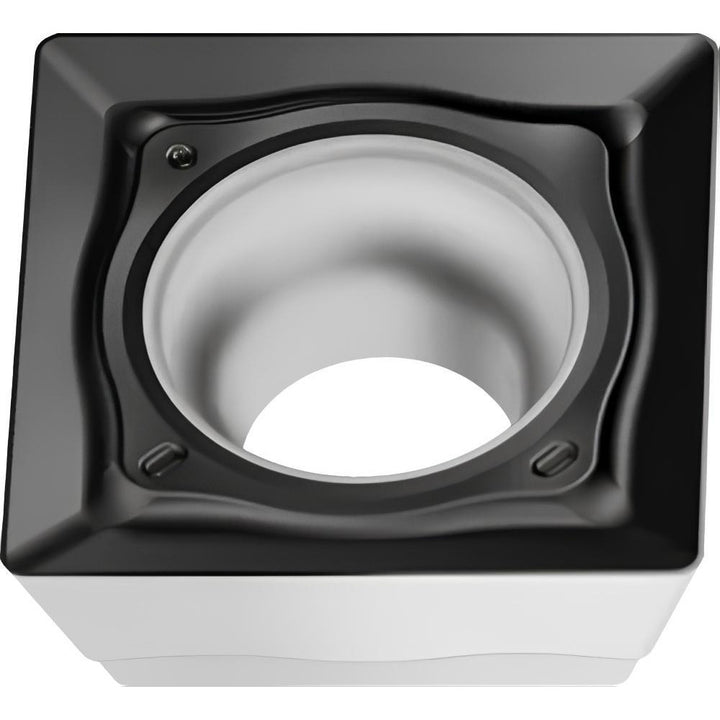

SDMT09T308-D51 WKP25S Solid Carbide Insert, Grade WKP25S, TiCN - Walter 6807395
MFR# 6807395ISO/ANSI# SDMT09T308-D51 WKP25SCat# SDMT09T308-D51Series SDMT
$19.72List $24.85
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeSquare
GradeWKP25S
MaterialSolid Carbide
CoatingTiCN
Description
The Walter 6807395 is a SDMT09T308-D51 WKP25S solid carbide indexable insert, grade WKP25S, TiCN coated. Suited for steel, cast iron.
Specifications
Ansi codeSDMT09T308-D51 WKP25S
Chip breakerD51
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityM4000
Cutting edge styleHoned
Hole diameter0.1539
Included angle degree90
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size09
Insert size code09T308
Insert styleSDMT
Iso codeSDMT09T308-D51 WKP25S
Length in3/8
Length range0.3200 to 0.4000
Manufacturers catalog numberSDMT09T308-D51
Manufacturer gradeWKP25S
Material applicationSteel; Cast Iron
Material gradeP25; K25
Maximum depth of cut0.3750
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle10
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width in3/8
