Walter

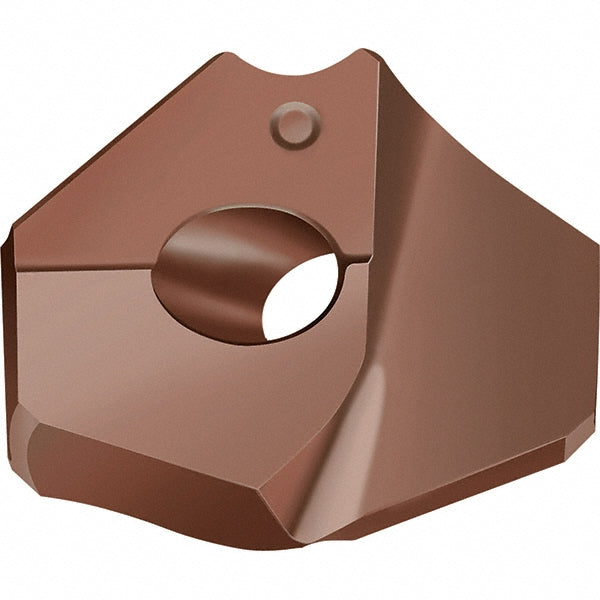

Carbide Insert, Grade WKK45C, TiAlN - Walter 6838222
MFR# 6838222Series P6005
$205.47List $263.52
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes1
GradeWKK45C
CoatingTiAlN
Description
The Walter 6838222 is a carbide indexable insert, grade WKK45C, TiAlN coated. Suited for steel.
Specifications
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter1.1024
Drill point angle140
Flute typeHelical
Included angle degree140
Insert geometryP6005
Insert holding methodClamp
Insert seat sizeJ
Iso numberP6005-D28,50R WKK45C
Manufacturer gradeWKK45C
Material gradeP45; K45
Number of flutes1
Point typeStandard
Primary workpiece materialSteel
Secondary workpiece materialCast Iron
Spiral typeRegular Spiral
StandardsANSI; ISO
StyleP6005
Tip materialSolid Carbide
