Walter

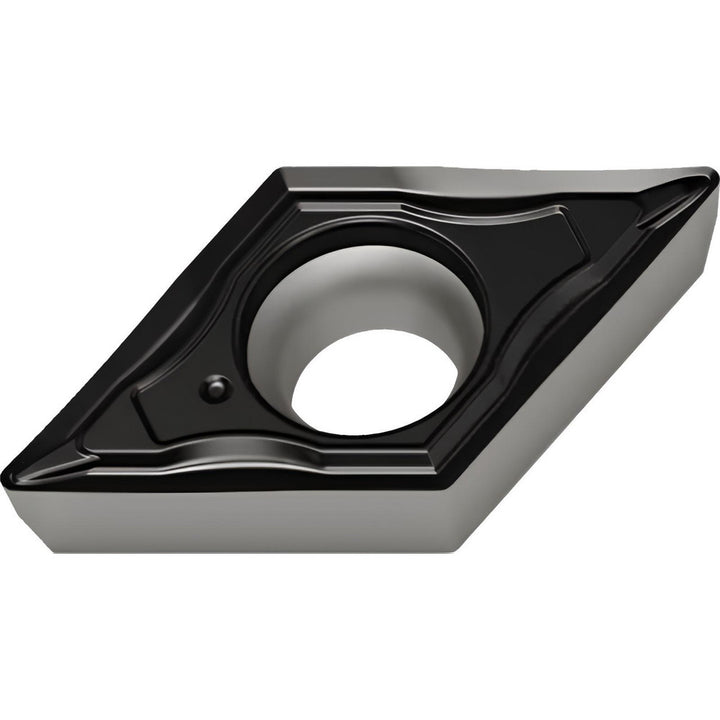

DCMT11T302-FM4 WSM10S Carbide Insert, Grade WSM10S, TiAlN - Walter 6839042
MFR# 6839042ISO/ANSI# DCMT11T302Series DCMT-FM4
$17.77List $22.79
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeD - Diamond (Rhombic) 55-Deg
GradeWSM10S
MaterialCarbide
CoatingTiAlN
Description
The Walter 6839042 is a DCMT11T302-FM4 WSM10S carbide indexable insert, grade WSM10S, TiAlN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Ansi insert codeDCMT32.50.5
Ansi size code32.50.5
Chip breakerFM4
Chip breaker operationFinishing
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1730
Included angle55
Industry standard numberDCMT3(2.5)0.5-FM4 WSM10S
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4580
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code32.50.5
Insert styleDCMT
Insert thickness in5/32
Iso codeDCMT11T302-FM4 WSM10S
Iso insert codeDCMT11T302
Iso size code11T302
Lead angle55
Length range0.4000 - 0.5000
Manufacturers catalog number6839042
Manufacturer gradeWSM10S
Material gradeM1; S10; P10
Maximum depth of cut0.4580
Multi use applicationTurning; Facing; Boring; Back Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle6
Relief angle7
Secondary workpiece materialSteel
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
