Walter

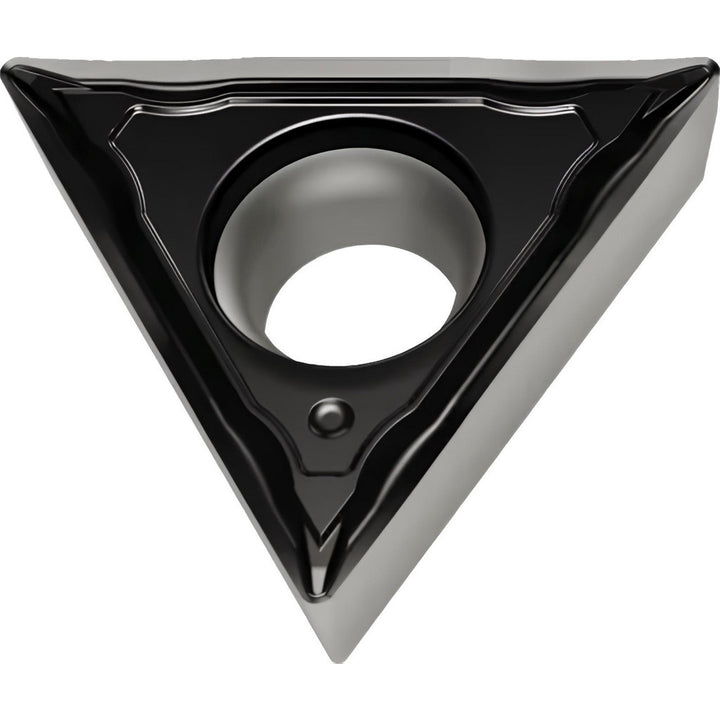

TCMT110204-FM4 WSM10S Carbide Insert, Grade WSM10S, TiAlN - Walter 6839055
MFR# 6839055ISO/ANSI# TCMT110204Series TCMT-FM4
$14.15List $18.14
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeT - Triangle
GradeWSM10S
MaterialCarbide
CoatingTiAlN
Description
The Walter 6839055 is a TCMT110204-FM4 WSM10S carbide indexable insert, grade WSM10S, TiAlN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Ansi insert codeTCMT21.51
Ansi size code21.51
Chip breakerFM4
Chip breaker operationFinishing
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1100
Included angle60
Industry standard numberTCMT2(1.5)1-FM4 WSM10S
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4330
Insert materialCarbide
Insert shapeT - Triangle
Insert size code21.51
Insert styleTCMT
Insert thickness in3/32
Iso codeTCMT110204-FM4 WSM10S
Iso insert codeTCMT110204
Iso size code110204
Lead angle60
Length range0.4000 - 0.5000
Manufacturers catalog number6839055
Manufacturer gradeWSM10S
Material gradeM1; S10; P10
Maximum depth of cut0.4230
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle6
Relief angle7
Secondary workpiece materialSteel
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width0.4330
Wiper edgeNo
