Walter

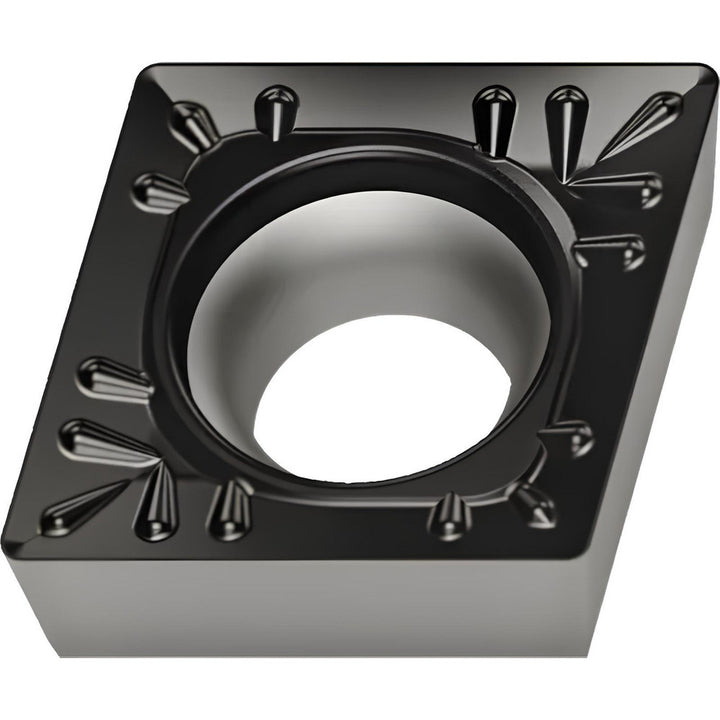

CCMT060204-RM4 WSM10S Carbide Insert, Grade WSM10S, TiAlN - Walter 6839090
MFR# 6839090ISO/ANSI# CCMT2(1.5)1-RM4 WSM10SSeries CCMT-RM4
$15.43List $19.45
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond 80
GradeWSM10S
MaterialCarbide
CoatingTiAlN
Description
The Walter 6839090 is a CCMT060204-RM4 WSM10S carbide indexable insert, grade WSM10S, TiAlN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Chip breakerRM4
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1100
Included angle80degree
Industry standard numberCCMT2(1.5)1-RM4 WSM10S
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2540
Insert materialCarbide
Insert shapeDiamond 80
Insert size code21.51
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT060204-RM4 WSM10S
Lead angle80degree
Length range0.0000 - 0.3000
Manufacturers catalog number6839090
Manufacturer gradeWSM10S
Material gradeM1; S10; P10
Maximum depth of cut0.2540
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle12
Relief angle7
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeM
Width0.2540in
Wiper edgeNo
