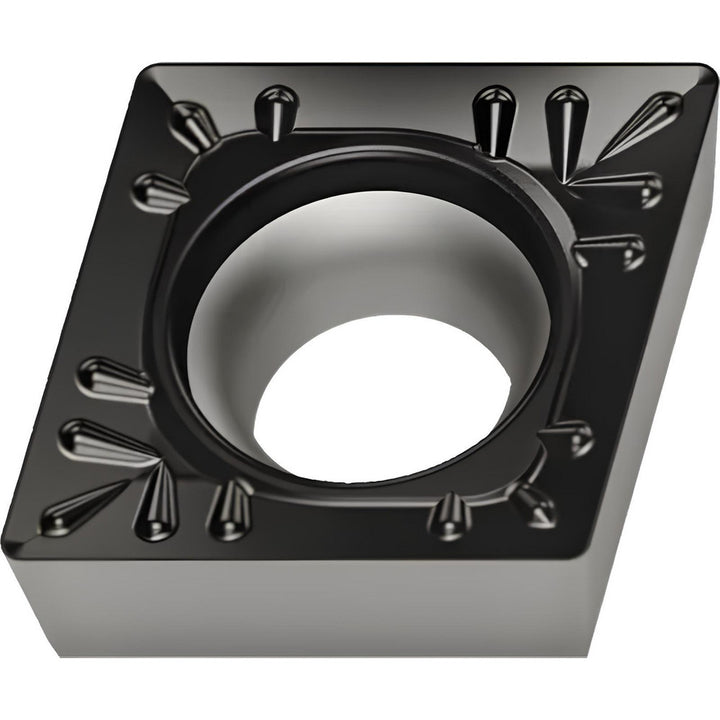

CCMT09T304-RM4 WSM30S Carbide Insert, Grade WSM30S, TiCN - Walter 6839098

Walter

CCMT09T304-RM4 WSM30S Carbide Insert, Grade WSM30S, TiCN - Walter 6839098

MFR# 6839098ISO/ANSI# CCMT3(2.5)1-RM4 WSM30SSeries CCMT-RM4

$14.89List $19.10 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond
GradeWSM30S
MaterialCarbide
CoatingTiCN

Description

The Walter 6839098 is a CCMT09T304-RM4 WSM30S carbide indexable insert, grade WSM30S, TiCN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Chip breakerRM4
Clearance codeC
Coating finishTiCN
Coating processPVD
Corner radius in1/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1730
Included angle80
Industry standard numberCCMT3(2.5)1-RM4 WSM30S
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3810
Insert materialCarbide
Insert shapeDiamond
Insert size code32.51
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT09T304-RM4 WSM30S
Lead angle80
Length range0.3000 - 0.4000
Manufacturers catalog number6839098
Manufacturer gradeWSM30S
Material gradeM30; S30; P30
Maximum depth of cut0.3810
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle12
Relief angle7
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeM
Width0.381
Wiper edgeNo
