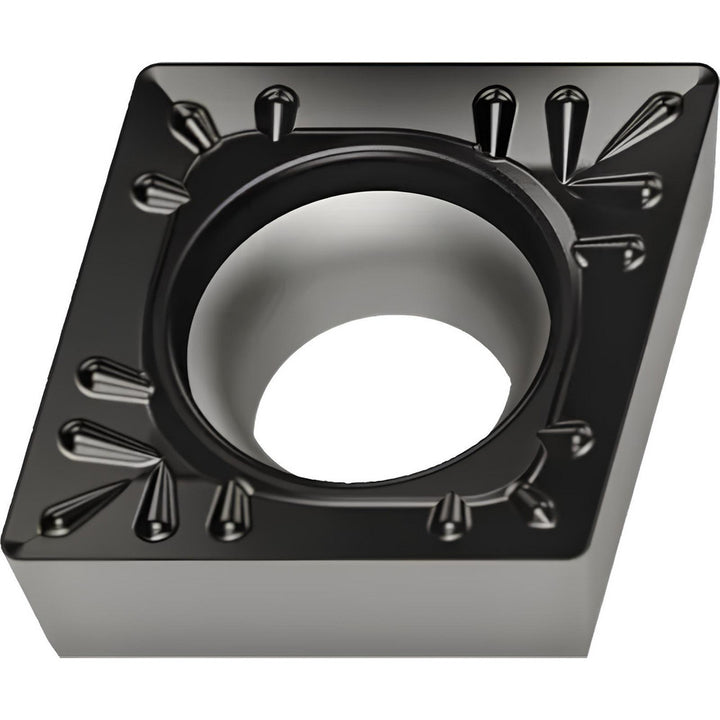

CCMT120408-RM4 WSM20S Carbide Insert, Grade WSM20S, TiCN - Walter 6839106

Walter

CCMT120408-RM4 WSM20S Carbide Insert, Grade WSM20S, TiCN - Walter 6839106

MFR# 6839106ISO/ANSI# CCMT432-RM4 WSM20SSeries CCMT-RM4

$21.31List $27.33 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeWSM20S
MaterialCarbide
CoatingTiCN

Description

The Walter 6839106 is a CCMT120408-RM4 WSM20S carbide indexable insert, grade WSM20S, TiCN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Chip breakerRM4
Clearance codeC
Coating finishTiCN
Coating processPVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2170
Included angle80degree
Industry standard numberCCMT432-RM4 WSM20S
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length0.5080
Insert materialCarbide
Insert shapeDiamond 80
Insert size code432
Insert styleCCMT
Insert thickness in3/16
Iso codeCCMT120408-RM4 WSM20S
Lead angle80degree
Length range0.5000 - 0.6000
Manufacturers catalog number6839106
Manufacturer gradeWSM20S
Material gradeM20; S20; P20
Maximum depth of cut0.5080
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle12
Relief angle7
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeM
Width0.5080in
Wiper edgeNo
