Walter

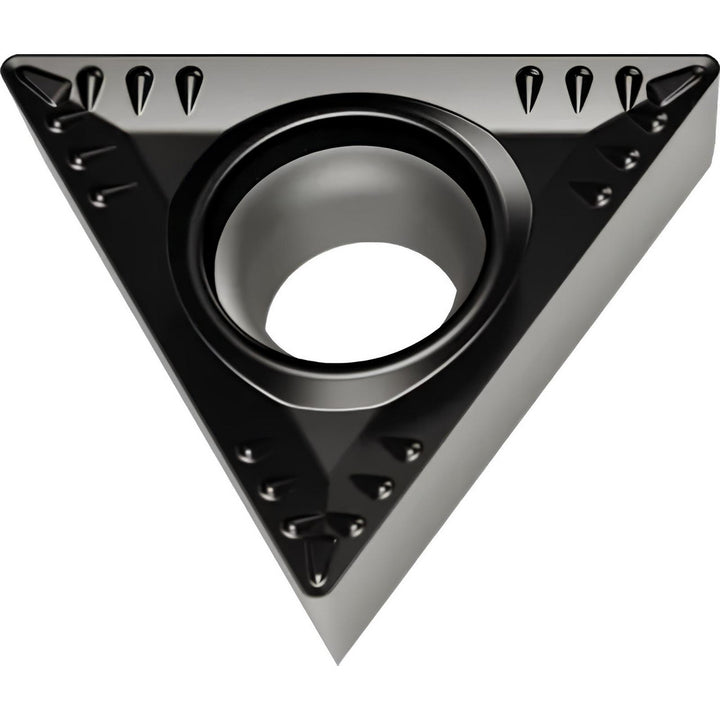

TCMT16T304-RM4 WSM30S Carbide Insert, Grade WSM30S, TiCN - Walter 6839137
MFR# 6839137ISO/ANSI# TCMT16T304Series TCMT-RM4
$22.01List $27.74
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeT - Triangle
GradeWSM30S
MaterialCarbide
CoatingTiCN
Description
The Walter 6839137 is a TCMT16T304-RM4 WSM30S carbide indexable insert, grade WSM30S, TiCN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Ansi insert codeTCMT32.51
Ansi size code32.51
Chip breakerRM4
Chip breaker operationRoughing; Medium Machining
Clearance codeC
Coating finishTiCN
Coating processPVD
Corner radius in1/64
Cutting edge styleChamfered; Honed
Full radiusNo
Hole diameter0.1730
Included angle60
Industry standard numberTCMT3(2.5)1-RM4 WSM30S
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6500
Insert materialCarbide
Insert shapeT - Triangle
Insert size code32.51
Insert styleTCMT
Insert thickness in5/32
Iso codeTCMT16T304-RM4 WSM30S
Iso insert codeTCMT16T304
Iso size code16T304
Lead angle60
Length range0.6500 - 0.7000
Manufacturers catalog number6839137
Manufacturer gradeWSM30S
Material gradeM30; S30; P30
Maximum depth of cut0.6500
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle12
Relief angle7
Secondary workpiece materialSteel
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width0.6500
Wiper edgeNo
