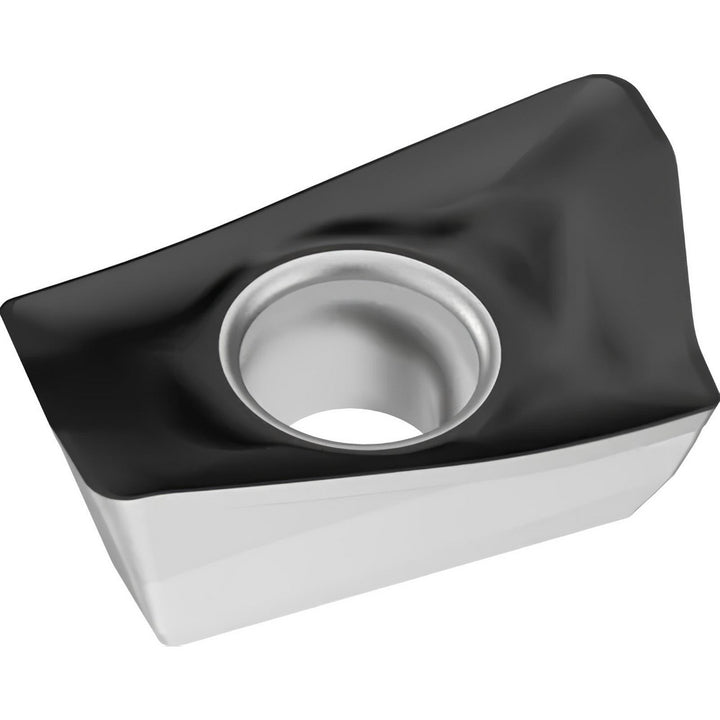

ADMT120408R-F56 WSM45X Solid Carbide Insert, Grade WSM45X, TiCN - Walter 6841373

Walter

ADMT120408R-F56 WSM45X Solid Carbide Insert, Grade WSM45X, TiCN - Walter 6841373

MFR# 6841373ISO/ANSI# ADMT120408R-F56 WSM45XCat# ADMT120408R-F56Series ADMT

$31.32List $40.17 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeWSM45X
MaterialSolid Carbide
CoatingTiCN

Description

The Walter 6841373 is a ADMT120408R-F56 WSM45X solid carbide indexable insert, grade WSM45X, TiCN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Ansi codeADMT120408R-F56 WSM45X
Chip breakerF56
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityF2010; F4042; F4138
Cutting edge styleChamfered; Honed
Hole diameter0.1339
Included angle degree85
Inscribed circle0.3310
Inscribed circle range0.3000 to 0.3500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size12
Insert size code120408
Insert styleADMT
Iso codeADMT120408R-F56 WSM45X
Length0.5350
Length range0.5000 to 0.6000
Manufacturers catalog numberADMT120408R-F56
Manufacturer gradeWSM45X
Material applicationStainless Steel; Superalloys & Titanium
Material gradeS45; M45
Maximum depth of cut0.5350
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle16
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.3310
