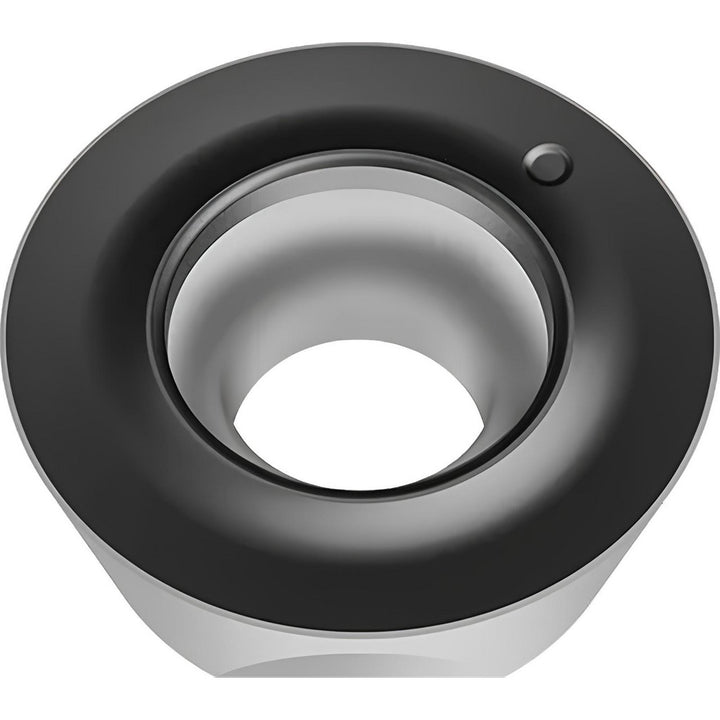

ROMX1204M0-D57 WSM45X Solid Carbide Insert, Grade WSM45X, TiCN - Walter 6841390

Walter

ROMX1204M0-D57 WSM45X Solid Carbide Insert, Grade WSM45X, TiCN - Walter 6841390

MFR# 6841390ISO/ANSI# ROMX1204M0-D57 WSM45XCat# ROMX1204M0-D57Series ROMX

$19.28List $24.72 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRound
GradeWSM45X
MaterialSolid Carbide
CoatingTiCN

Description

The Walter 6841390 is a ROMX1204M0-D57 WSM45X solid carbide indexable insert, grade WSM45X, TiCN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Ansi codeROMX1204M0-D57 WSM45X
Chip breakerD57
Coating finishTiCN
Coating processCVD
Convex radius0.2360
Corner radius0.2362
Cutter series compatibilityF2334R
Cutting edge styleHoned
Hole diameter0.1728
Included angle degree360
Inscribed circle0.4720
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size12
Insert size code1204M0
Insert styleROMX
Iso codeROMX1204M0-D57 WSM45X
Length0.4720
Length range0.4500 to 0.5000
Manufacturers catalog numberROMX1204M0-D57
Manufacturer gradeWSM45X
Material applicationStainless Steel; Superalloys & Titanium
Material gradeS45; M45
Maximum depth of cut0.2360
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle10
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.4720
