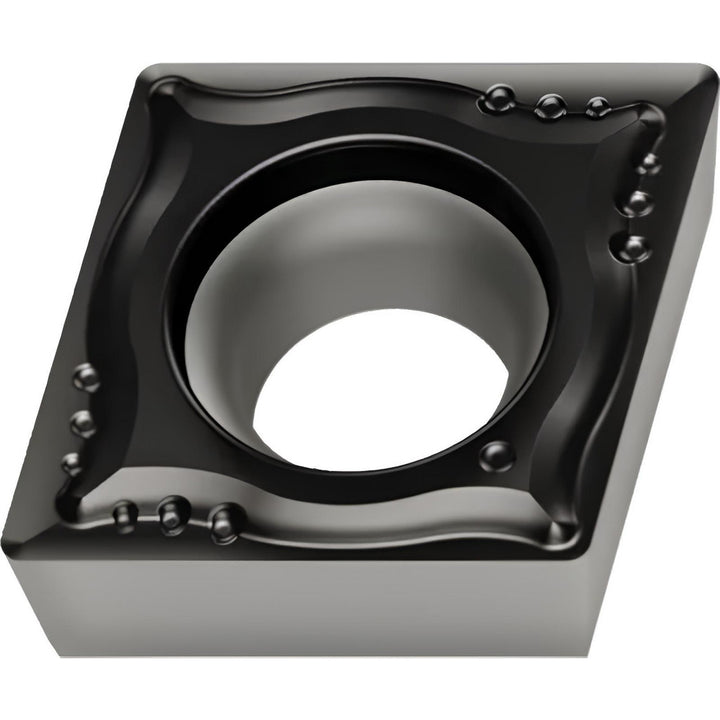

CPGT060204-MM4 WSM20S Carbide Insert, Grade WSM20S, TiCN - Walter 6844638

Walter

CPGT060204-MM4 WSM20S Carbide Insert, Grade WSM20S, TiCN - Walter 6844638

MFR# 6844638ISO/ANSI# CPGT2(1.5)1-MM4 WSM20SSeries CPGT-MM4

$22.97List $29.47 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeDiamond 80
GradeWSM20S
MaterialCarbide
CoatingTiCN

Description

The Walter 6844638 is a CPGT060204-MM4 WSM20S carbide indexable insert, grade WSM20S, TiCN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Chip breakerMM4
Clearance codeP
Coating finishTiCN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1100
Included angle80degree
Industry standard numberCPGT2(1.5)1-MM4 WSM20S
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2540
Insert materialCarbide
Insert shapeDiamond 80
Insert size code21.51
Insert styleCPGT
Insert thickness in3/32
Iso codeCPGT060204-MM4 WSM20S
Lead angle80degree
Length range0.0000 - 0.3000
Manufacturers catalog number6844638
Manufacturer gradeWSM20S
Material gradeM20; S20; P20
Maximum depth of cut0.2540
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle7
Relief angle11
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeG
Width0.2540in
Wiper edgeNo
