Walter

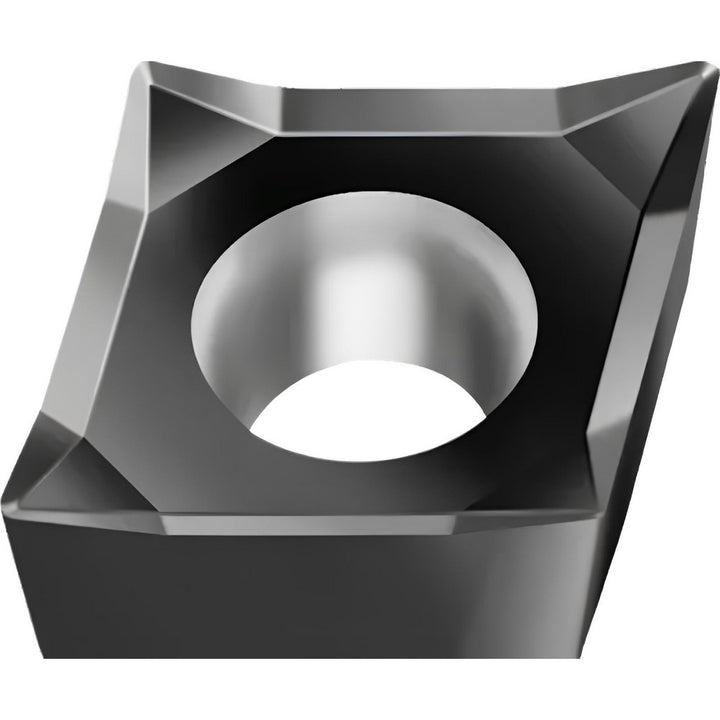

CCGT060202-MN2 WSM01 Carbide Insert, Grade WSM01, TiAlN - Walter 6876621
MFR# 6876621ISO/ANSI# CCGT2(1.5)0.5-MN2 WSM01Series CCGT-MN2
$23.65List $30.34
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeWSM01
MaterialCarbide
CoatingTiAlN
Description
The Walter 6876621 is a CCGT060202-MN2 WSM01 carbide indexable insert, grade WSM01, TiAlN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Chip breakerMN2
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/128
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1100
Included angle80
Industry standard numberCCGT2(1.5)0.5-MN2 WSM01
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2540
Insert materialCarbide
Insert shapeDiamond
Insert size code21.50.5
Insert styleCCGT
Insert thickness in3/32
Iso codeCCGT060202-MN2 WSM01
Lead angle80
Length range0.0000 - 0.3000
Manufacturers catalog number6876621
Manufacturer gradeWSM01
Material gradeM10; S10; P10; N10; H20
Maximum depth of cut0.2540
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle25
Relief angle7
Secondary workpiece materialSteel; Non-Ferrous Metal; Hard Material
StandardsANSI; ISO
Tolerance codeG
Width0.254
Wiper edgeNo
