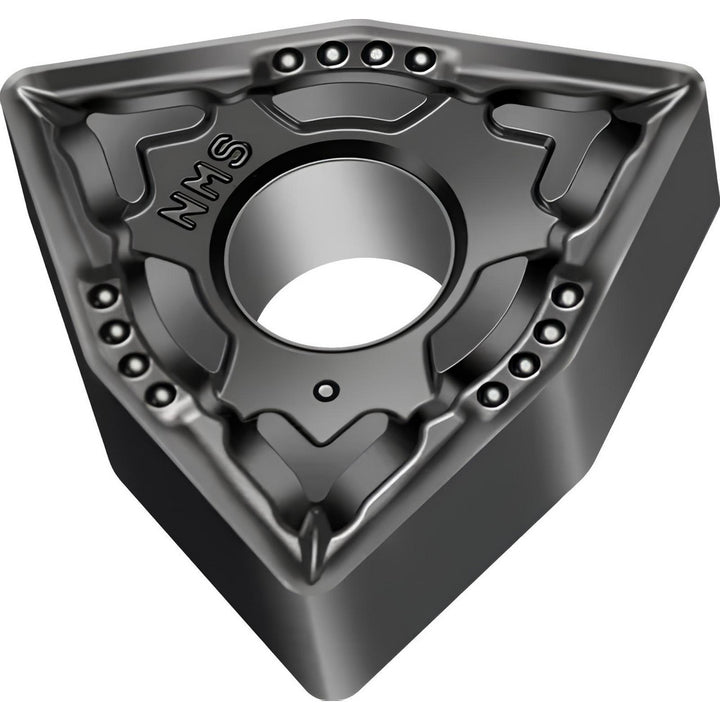

WNMG080408-NMS WSM01 Carbide Insert, Grade WSM01, TiAlN - Walter 6876744

Walter

WNMG080408-NMS WSM01 Carbide Insert, Grade WSM01, TiAlN - Walter 6876744

MFR# 6876744ISO/ANSI# WNMG432-NMS WSM01Series WNMG-NMS

$21.14List $27.11 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeTrigon
GradeWSM01
MaterialCarbide
CoatingTiAlN

Description

The Walter 6876744 is a WNMG080408-NMS WSM01 carbide indexable insert, grade WSM01, TiAlN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Chip breakerNMS
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2030
Included angle80degree
Industry standard numberWNMG432-NMS WSM01
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6840
Insert materialCarbide
Insert shapeTrigon
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080408-NMS WSM01
Lead angle80degree
Length range0.6500 - 0.7000
Manufacturers catalog number6876744
Manufacturer gradeWSM01
Material gradeM10; S10; P10; N10; H20
Maximum depth of cut0.3420
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakeNegative
Rake angle18
Relief angle0
Secondary workpiece materialSteel; Non-Ferrous Metal; Hard Material
StandardsANSI; ISO
Tolerance codeM
Width0.6840in
Wiper edgeNo
