Walter

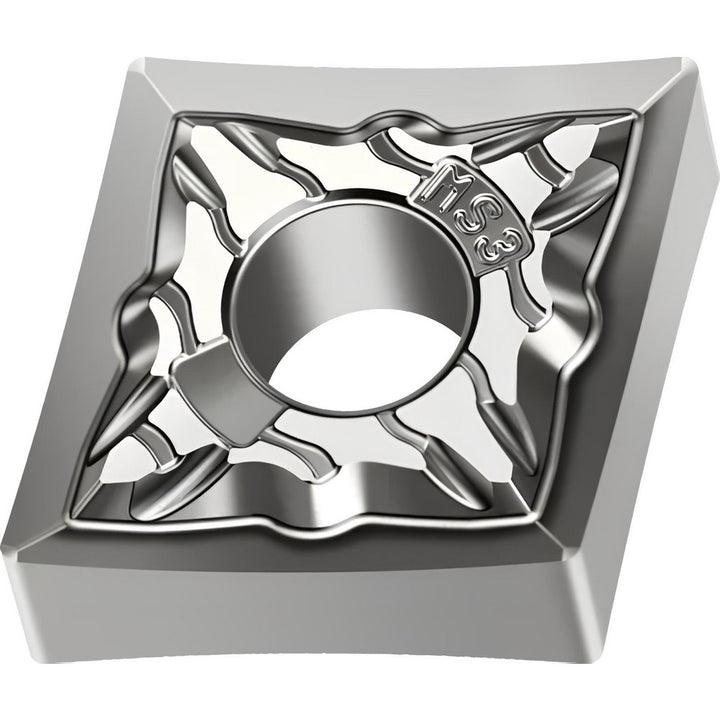

CNMG120404-MS3 WS10 Carbide Insert, Grade WS10 - Walter 6890494
MFR# 6890494ISO/ANSI# CNMG431-MS3 WS10Series CNMG-MS3
$14.05List $18.02
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeWS10
MaterialCarbide
Description
The Walter 6890494 is a CNMG120404-MS3 WS10 carbide indexable insert, grade WS10. Suited for superalloys & titanium.
Specifications
Chip breakerMS3
Clearance codeN
Coating processUncoated
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2030
Included angle80
Industry standard numberCNMG431-MS3 WS10
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialCarbide
Insert shapeDiamond
Insert size code431
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120404-MS3 WS10
Lead angle80
Length range0.5000 - 0.6000
Manufacturers catalog number6890494
Manufacturer gradeWS10
Material gradeS10
Maximum depth of cut0.5080
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSuperalloys & Titanium
RakeNegative
Rake angle13
Relief angle0
Secondary workpiece materialNon-Ferrous Metal
StandardsANSI; ISO
Tolerance codeM
Width0.508
Wiper edgeNo
