Walter

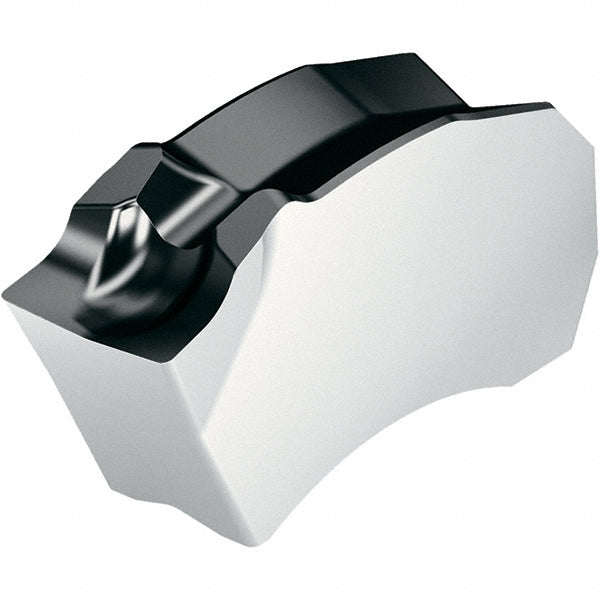

SX-3E300N02-CF5 WSM23S Carbide Insert, Grade WSM23S, TiAlN - Walter 6913044
MFR# 6913044ISO/ANSI# SX-3E300N02-CF5 WSM23SCat# SX-3E300N02-CF5 WSM23SSeries SX-E-CF5
$18.61List $23.87
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeWSM23S
CoatingTiAlN
Description
The Walter 6913044 is a SX-3E300N02-CF5 WSM23S carbide indexable insert, grade WSM23S, TiAlN coated. Suited for superalloy.
Specifications
ChipbreakerCF5
Coating finishTiAlN
Coating processPVD
Corner radius0.0080
Cutting tool applicationGrooving; Parting
Cutting width0.1180
Insert handNeutral
Insert size code3E300N02
Insert styleSX
Iso codeSX-3E300N02-CF5 WSM23S
Lead angle directionNeutral
Manufacturers catalog numberSX-3E300N02-CF5 WSM23S
Manufacturer gradeWSM23S
Multi use toolYes
Overall length0.4840
Overall width0.1180
Primary workpiece materialSuperalloy
Relief angle23.00
StandardsANSI; ISO
