Walter

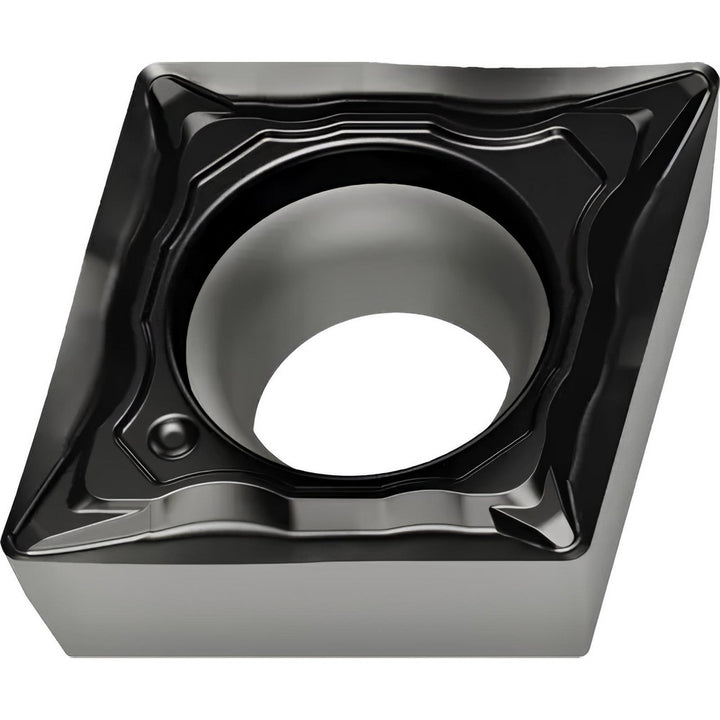

CCMT120404-FM4 WSM10S Carbide Insert, Grade WSM10S, TiAlN - Walter 6917247
MFR# 6917247ISO/ANSI# CCMT431-FM4 WSM10SSeries CCMT-FM4
$21.31List $27.33
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeWSM10S
MaterialCarbide
CoatingTiAlN
Description
The Walter 6917247 is a CCMT120404-FM4 WSM10S carbide indexable insert, grade WSM10S, TiAlN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Chip breakerFM4
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2170
Included angle80
Industry standard numberCCMT431-FM4 WSM10S
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length0.5080
Insert materialCarbide
Insert shapeDiamond
Insert size code431
Insert styleCCMT
Insert thickness in3/16
Iso codeCCMT120404-FM4 WSM10S
Lead angle80
Length range0.5000 - 0.6000
Manufacturers catalog number6917247
Manufacturer gradeWSM10S
Material gradeM1; S10; P10
Maximum depth of cut0.1000
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle6
Relief angle7
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeM
Width0.508
Wiper edgeNo
