Walter

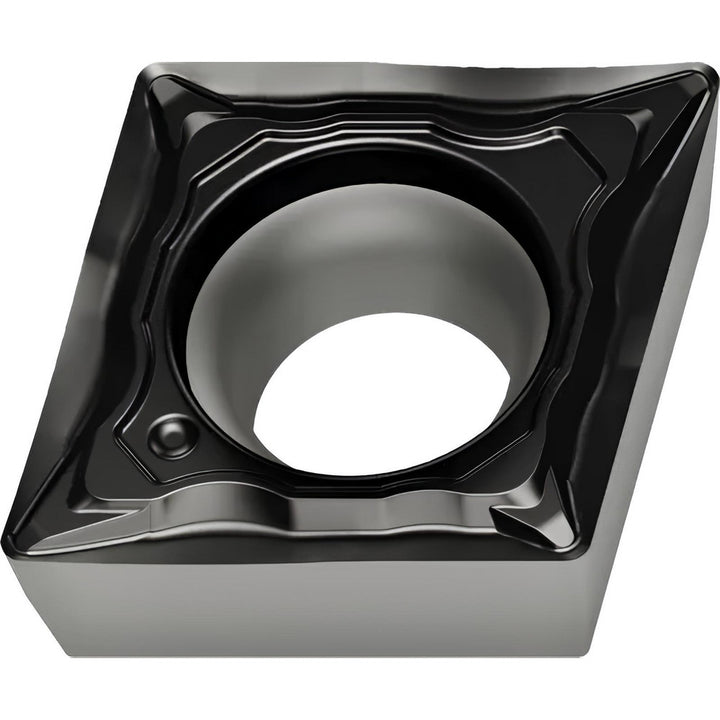

CCMT120404-FM4 WSM20S Carbide Insert, Grade WSM20S, TiCN - Walter 6917248
MFR# 6917248ISO/ANSI# CCMT120404Series CCMT-FM4
$25.61List $32.28
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeWSM20S
MaterialCarbide
CoatingTiCN
Description
The Walter 6917248 is a CCMT120404-FM4 WSM20S carbide indexable insert, grade WSM20S, TiCN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Ansi insert codeCCMT431
Ansi size code431
Chip breakerFM4
Chip breaker operationFinishing
Clearance codeC
Coating finishTiCN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2170
Included angle80
Industry standard numberCCMT431-FM4 WSM20S
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length0.5080
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code431
Insert styleCCMT
Insert thickness in3/16
Iso codeCCMT120404-FM4 WSM20S
Iso insert codeCCMT120404
Iso size code120404
Lead angle80
Length range0.5000 - 0.6000
Manufacturers catalog number6917248
Manufacturer gradeWSM20S
Material gradeM20; S20; P20
Maximum depth of cut0.1000
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle6
Relief angle7
Secondary workpiece materialSteel
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width0.5080
Wiper edgeNo
