Walter

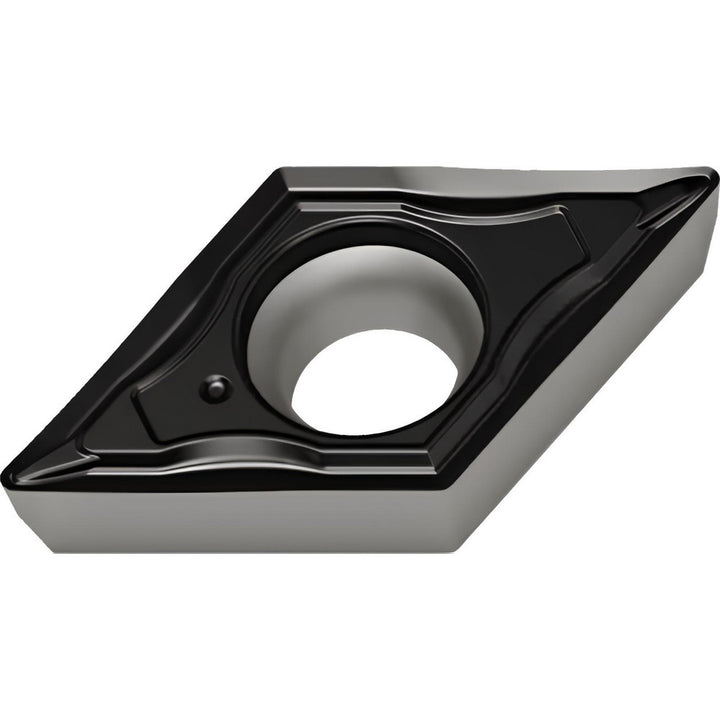

DCMT070208-FM4 WSM10S Carbide Insert, Grade WSM10S, TiAlN - Walter 6917256
MFR# 6917256ISO/ANSI# DCMT2(1.5)2-FM4 WSM10SSeries DCMT-FM4
$15.34List $19.34
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond 55
GradeWSM10S
MaterialCarbide
CoatingTiAlN
Description
The Walter 6917256 is a DCMT070208-FM4 WSM10S carbide indexable insert, grade WSM10S, TiAlN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Chip breakerFM4
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1100
Included angle55degree
Industry standard numberDCMT2(1.5)2-FM4 WSM10S
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.3050
Insert materialCarbide
Insert shapeDiamond 55
Insert size code21.52
Insert styleDCMT
Insert thickness in3/32
Iso codeDCMT070208-FM4 WSM10S
Lead angle55degree
Length range0.3000 - 0.4000
Manufacturers catalog number6917256
Manufacturer gradeWSM10S
Material gradeM1; S10; P10
Maximum depth of cut0.1000
Multi use applicationTurning; Facing; Boring; Back Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle6
Relief angle7
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeM
Width in1/4in
Wiper edgeNo
