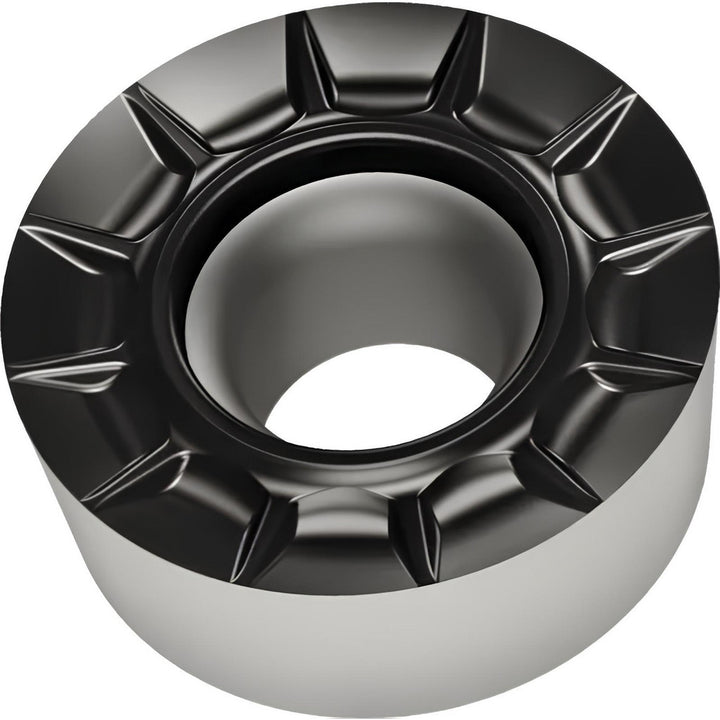

RCMT1204M0-FM4 WSM30S Carbide Insert, Grade WSM30S, TiCN - Walter 6917268

Walter

RCMT1204M0-FM4 WSM30S Carbide Insert, Grade WSM30S, TiCN - Walter 6917268

MFR# 6917268ISO/ANSI# RCMT1204M0-FM4 WSM30SSeries RCMT-FM4

$16.16List $20.72 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRound
GradeWSM30S
MaterialCarbide
CoatingTiCN

Description

The Walter 6917268 is a RCMT1204M0-FM4 WSM30S carbide indexable insert, grade WSM30S, TiCN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Chip breakerFM4
Clearance codeC
Coating finishTiCN
Coating processPVD
Corner radius0.2362
Cutting edge styleHoned
Full radiusYes
Hole diameter0.1730
Included angle360degree
Inscribed circle0.4724
Insert handNeutral
Insert holding methodScrew
Insert length0.4724
Insert materialCarbide
Insert shapeRound
Insert size code1204M0
Insert styleRCMT
Insert thickness in3/16
Iso codeRCMT1204M0-FM4 WSM30S
Lead angle360degree
Length range0.4000 - 0.5000
Manufacturers catalog number6917268
Manufacturer gradeWSM30S
Material gradeM30; S30; P30
Maximum depth of cut0.2000
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle6
Relief angle7
Secondary workpiece materialSteel
StandardsISO
Tolerance codeM
Width0.4724in
Wiper edgeNo
