WCMT06T304-RM4 WSM20S Carbide Insert, Grade WSM20S, TiCN - Walter 6917332

Walter

WCMT06T304-RM4 WSM20S Carbide Insert, Grade WSM20S, TiCN - Walter 6917332

MFR# 6917332ISO/ANSI# WCMT3(2.5)1-RM4 WSM20SSeries WCMT-RM4

$16.93List $21.71 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeTrigon
GradeWSM20S
MaterialCarbide
CoatingTiCN

Description

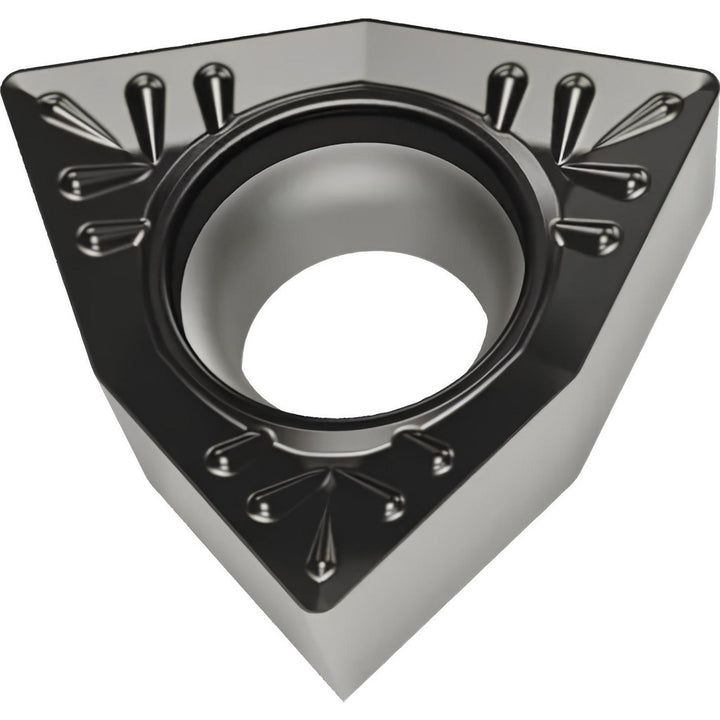

The Walter 6917332 is a WCMT06T304-RM4 WSM20S carbide indexable insert, grade WSM20S, TiCN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Chip breakerRM4
Clearance codeC
Coating finishTiCN
Coating processPVD
Corner radius in1/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1730
Included angle80
Industry standard numberWCMT3(2.5)1-RM4 WSM20S
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.5140
Insert materialCarbide
Insert shapeTrigon
Insert size code32.51
Insert styleWCMT
Insert thickness in5/32
Iso codeWCMT06T304-RM4 WSM20S
Lead angle80
Length range0.5000 - 0.6000
Manufacturers catalog number6917332
Manufacturer gradeWSM20S
Material gradeM20; S20; P20
Maximum depth of cut0.1100
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle12
Relief angle7
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeM
Width0.514
Wiper edgeNo
