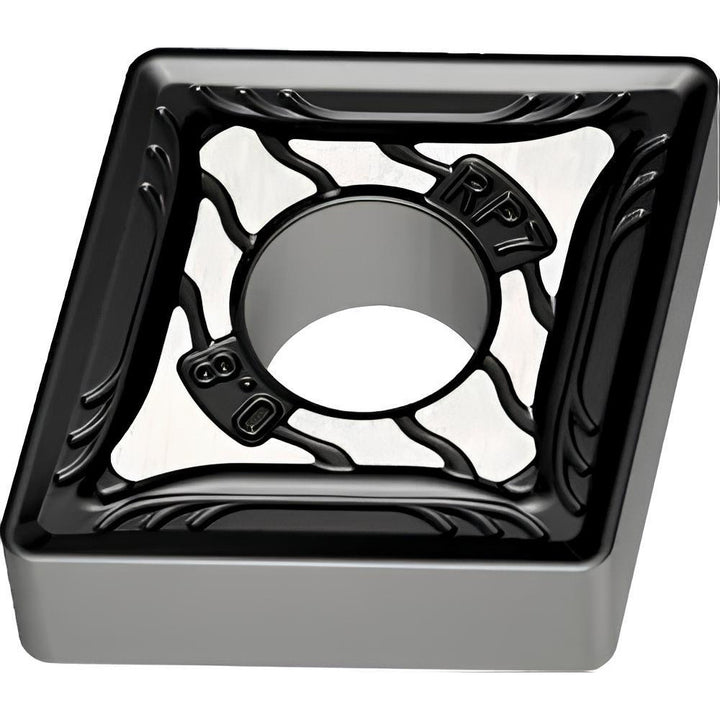

CNMG250924-RP7 WKP30S Carbide Insert, Grade WKP30S, TiCN - Walter 6930010

Walter

CNMG250924-RP7 WKP30S Carbide Insert, Grade WKP30S, TiCN - Walter 6930010

MFR# 6930010ISO/ANSI# CNMG866-RP7 WKP30SSeries CNMG-RP7

$84.21List $108.00 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1
ShapeDiamond 80
GradeWKP30S
MaterialCarbide
CoatingTiCN

Description

The Walter 6930010 is a CNMG250924-RP7 WKP30S carbide indexable insert, grade WKP30S, TiCN coated. Suited for steel, cast iron.

Specifications

Chip breakerRP7
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.3590
Included angle80degree
Industry standard numberCNMG866-RP7 WKP30S
Inscribed circle in1
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.0150
Insert materialCarbide
Insert shapeDiamond 80
Insert size code866
Insert styleCNMG
Insert thickness in3/8
Iso codeCNMG250924-RP7 WKP30S
Lead angle80degree
Length range0.7000 - 10.0000
Manufacturers catalog number6930010
Manufacturer gradeWKP30S
Material gradeP35; M30; K30
Maximum depth of cut0.4000
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle18
Relief angle0
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeM
Width1.0150in
Wiper edgeNo
