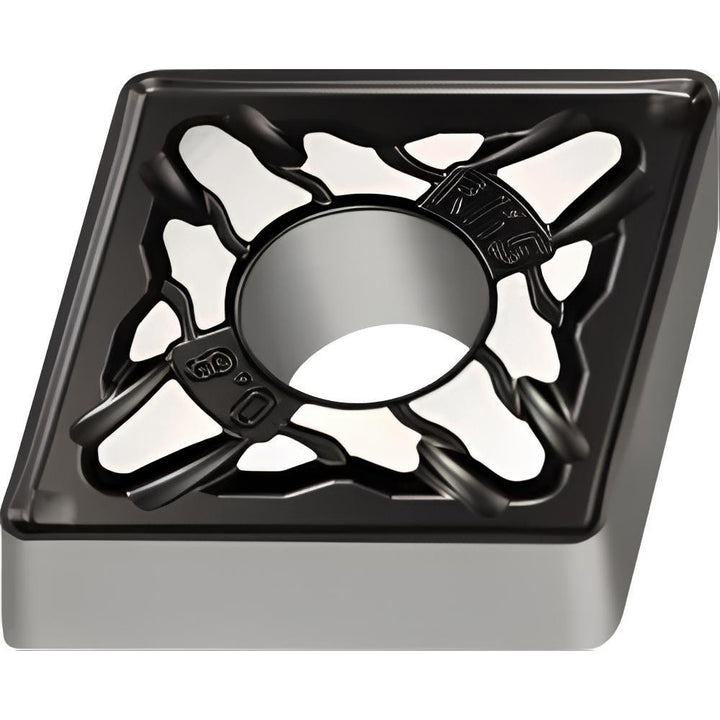

CNMG120408-RM5 WMP20S Carbide Insert, Grade WMP20S, TiCN - Walter 6944683

Walter

CNMG120408-RM5 WMP20S Carbide Insert, Grade WMP20S, TiCN - Walter 6944683

MFR# 6944683ISO/ANSI# CNMG432-RM5 WMP20SSeries CNMG-RM5

$18.44List $23.65 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeWMP20S
MaterialCarbide
CoatingTiCN

Description

The Walter 6944683 is a CNMG120408-RM5 WMP20S carbide indexable insert, grade WMP20S, TiCN coated. Suited for steel, stainless steel.

Specifications

Chip breakerRM5
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2030
Included angle80degree
Industry standard numberCNMG432-RM5 WMP20S
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialCarbide
Insert shapeDiamond 80
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120408-RM5 WMP20S
Lead angle80degree
Length range0.5000 - 0.6000
Manufacturers catalog number6944683
Manufacturer gradeWMP20S
Material gradeM20; P25; S20
Maximum depth of cut0.5080
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel
RakeNegative
Rake angle20
Relief angle0
Secondary workpiece materialSuper-alloys & Titanium
StandardsANSI; ISO
Tolerance codeM
Width0.5080in
Wiper edgeNo
