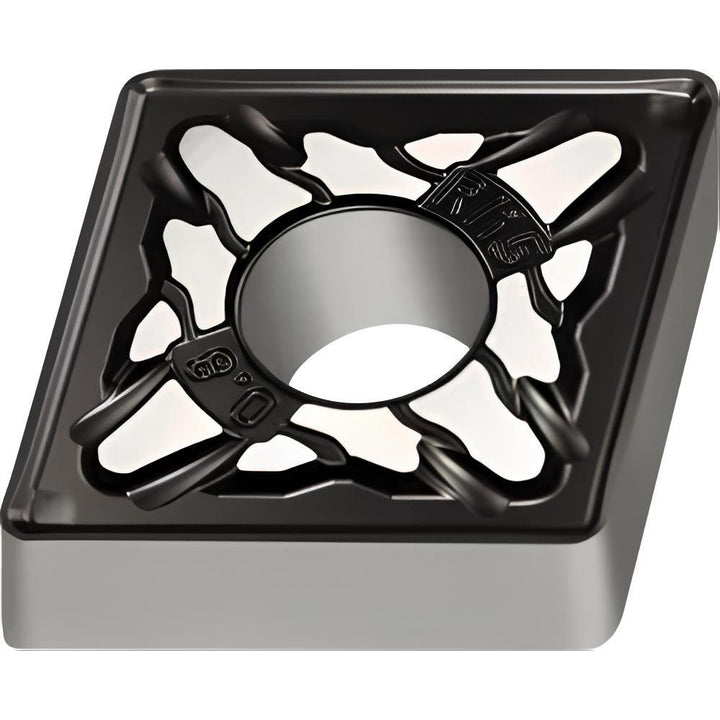

CNMG120408-RM5 WSM10S Carbide Insert, Grade WSM10S, TiAlN - Walter 6944734

Walter

CNMG120408-RM5 WSM10S Carbide Insert, Grade WSM10S, TiAlN - Walter 6944734

MFR# 6944734ISO/ANSI# CNMG432-RM5 WSM10SSeries CNMG-RM5

$18.44List $23.65 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeWSM10S
MaterialCarbide
CoatingTiAlN

Description

The Walter 6944734 is a CNMG120408-RM5 WSM10S carbide indexable insert, grade WSM10S, TiAlN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Chip breakerRM5
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2030
Included angle80degree
Industry standard numberCNMG432-RM5 WSM10S
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialCarbide
Insert shapeDiamond 80
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120408-RM5 WSM10S
Lead angle80degree
Length range0.5000 - 0.6000
Manufacturers catalog number6944734
Manufacturer gradeWSM10S
Material gradeM1; S10; P10
Maximum depth of cut0.2000
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakeNegative
Rake angle20
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeM
Width0.5080in
Wiper edgeNo
