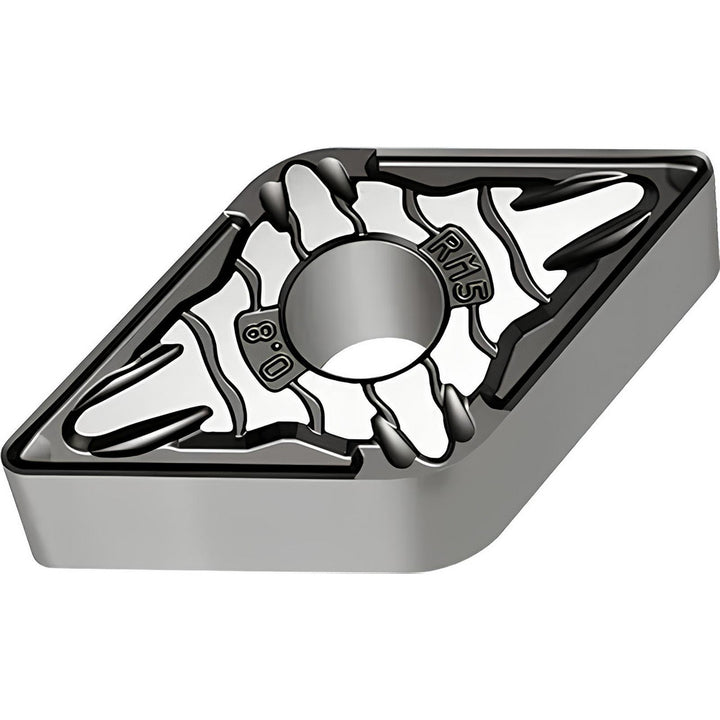

DNMG150408-RM5 WSM30S Carbide Insert, Grade WSM30S, TiCN - Walter 6944743

Walter

DNMG150408-RM5 WSM30S Carbide Insert, Grade WSM30S, TiCN - Walter 6944743

MFR# 6944743ISO/ANSI# DNMG432-RM5 WSM30SSeries DNMG-RM5

$23.49List $30.13 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond 55
GradeWSM30S
MaterialCarbide
CoatingTiCN

Description

The Walter 6944743 is a DNMG150408-RM5 WSM30S carbide indexable insert, grade WSM30S, TiCN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Chip breakerRM5
Clearance codeN
Coating finishTiCN
Coating processPVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2030
Included angle55degree
Industry standard numberDNMG432-RM5 WSM30S
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6104
Insert materialCarbide
Insert shapeDiamond 55
Insert size code432
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150408-RM5 WSM30S
Lead angle55degree
Length range0.6000 - 0.6500
Manufacturers catalog number6944743
Manufacturer gradeWSM30S
Material gradeM30; S30; P30
Maximum depth of cut0.2000
Multi use applicationTurning; Facing; Boring; Back Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakeNegative
Rake angle20
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
