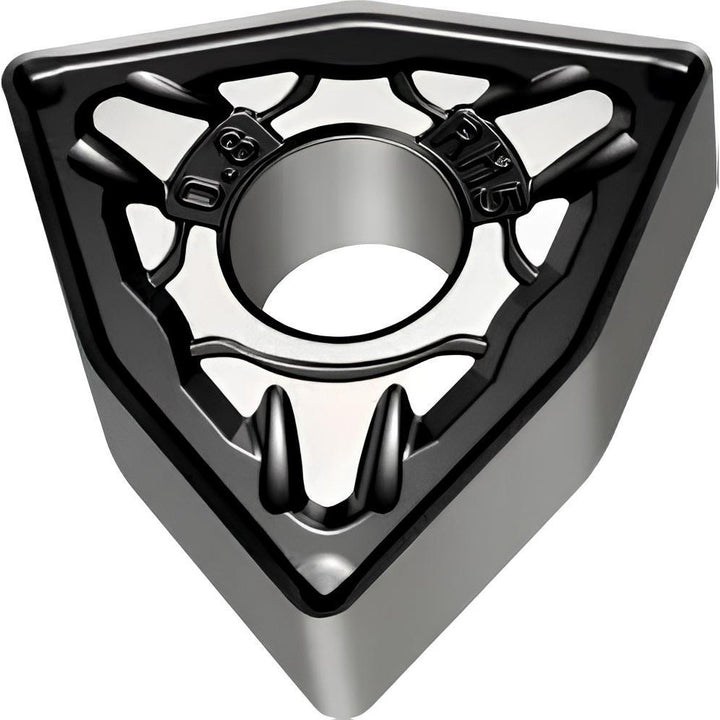

WNMG060408-RM5 WSM20S Carbide Insert, Grade WSM20S, TiCN - Walter 6944754

Walter

WNMG060408-RM5 WSM20S Carbide Insert, Grade WSM20S, TiCN - Walter 6944754

MFR# 6944754ISO/ANSI# WNMG332-RM5 WSM20SSeries WNMG-RM5

$16.32List $20.93 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeTrigon
GradeWSM20S
MaterialCarbide
CoatingTiCN

Description

The Walter 6944754 is a WNMG060408-RM5 WSM20S carbide indexable insert, grade WSM20S, TiCN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Chip breakerRM5
Clearance codeN
Coating finishTiCN
Coating processPVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1500
Included angle80degree
Industry standard numberWNMG332-RM5 WSM20S
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5140
Insert materialCarbide
Insert shapeTrigon
Insert size code332
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG060408-RM5 WSM20S
Lead angle80degree
Length range0.5000 - 0.6000
Manufacturers catalog number6944754
Manufacturer gradeWSM20S
Material gradeM20; S20; P20
Maximum depth of cut0.1370
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakeNegative
Rake angle20
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeM
Width0.5140in
Wiper edgeNo
