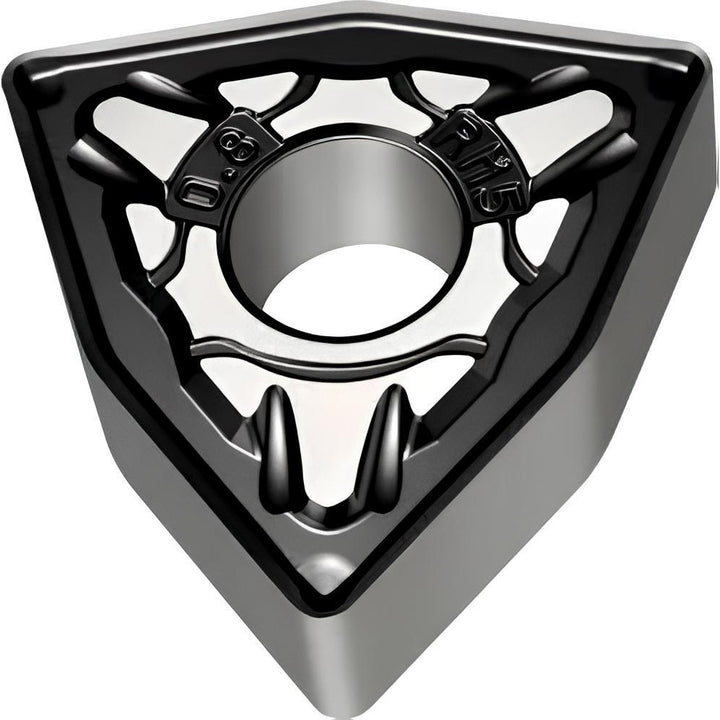

WNMG080408-RM5 WSM20S Carbide Insert, Grade WSM20S, TiCN - Walter 6944757

Walter

WNMG080408-RM5 WSM20S Carbide Insert, Grade WSM20S, TiCN - Walter 6944757

MFR# 6944757ISO/ANSI# WNMG432-RM5 WSM20SSeries WNMG-RM5

$20.46List $26.24 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeTrigon
GradeWSM20S
MaterialCarbide
CoatingTiCN

Description

The Walter 6944757 is a WNMG080408-RM5 WSM20S carbide indexable insert, grade WSM20S, TiCN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Chip breakerRM5
Clearance codeN
Coating finishTiCN
Coating processPVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2030
Included angle80degree
Industry standard numberWNMG432-RM5 WSM20S
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6840
Insert materialCarbide
Insert shapeTrigon
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080408-RM5 WSM20S
Lead angle80degree
Length range0.6500 - 0.7000
Manufacturers catalog number6944757
Manufacturer gradeWSM20S
Material gradeM20; S20; P20
Maximum depth of cut0.1770
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakeNegative
Rake angle20
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeM
Width0.6840in
Wiper edgeNo
