Walter

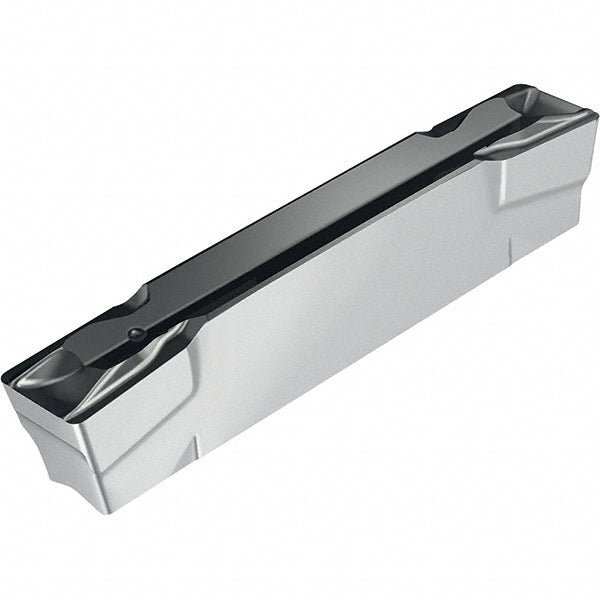

GX242E300N02UF8 WSM23S Carbide Insert, Grade WSM23S, Al2O3 - Walter 6955192
MFR# 6955192ISO/ANSI# GX242E300N02UF8 WSM23SCat# GX24-2E300N02-UF8 WSM23SSeries GX-E-UF8
$39.23List $50.32
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeWSM23S
CoatingAl2O3
Description
The Walter 6955192 is a GX242E300N02UF8 WSM23S carbide indexable insert, grade WSM23S, Al2O3 coated. Suited for superalloys.
Specifications
Ansi codeGX242E300N02UF8 WSM23S
Chip breakerUF8
Coating finishAl2O3
Coating processPVD
Corner radius0.0080
Cutting width0.1180
External relief angle10
Insert size code2E300N02
Insert styleGX
Iso codeGX242E300N02UF8 WSM23S
Manufacturers catalog numberGX24-2E300N02-UF8 WSM23S
Manufacturer gradeWSM23S
Measurement typeMetric
Multi use toolYes
Overall length0.945
Primary workpiece materialSuperalloys
StandardsANSI; ISO
