Walter
Indexable Grooving - Walter 6955234
MFR# 6955234Series G1011
$322.06List $370.44
Save 13%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

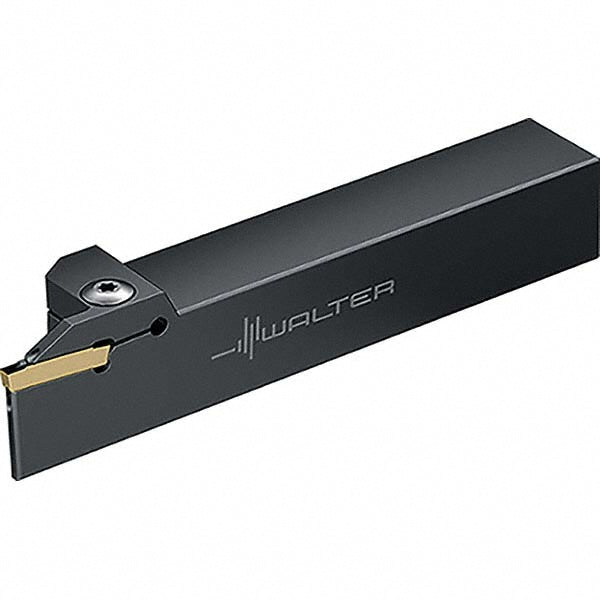

The Walter 6955234 indexable grooving. Suited for stainless steel, steel, superalloy, titanium, titanium alloy. Series G1011.
Specifications
Back of bar to cutting edge (mm)145.00
Compatible insert size codeGXE; GXF
Coolant throughYes
Hand of holderRight Hand
Head length1.378
Insert compatibilityGX
Insert holding methodClamp
Maximum depth of cut (mm)12.00
Maximum groove width (mm)4.75
Minimum groove width (mm)4.00
Multi use toolNo
Overall length (mm)145
Primary workpiece materialStainless Steel; Steel; Superalloy; Titanium; Titanium Alloy
Shank height1.0000
Shank length (mm)110.00
Toolholder materialSteel
Toolholder styleG1011
Toolholder typeExternal Grooving
