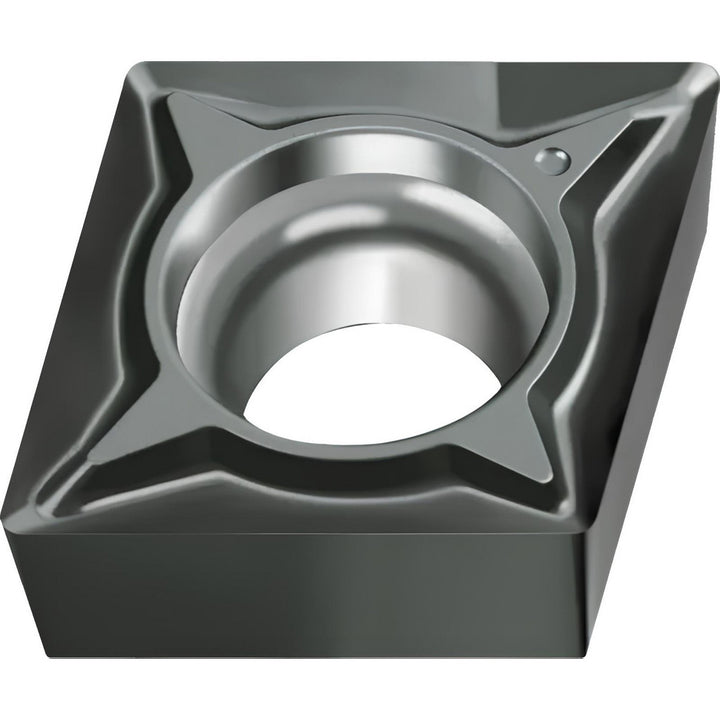

CCGT09T308-FN2 WNN10 Carbide Insert, Grade WNN10, TiAlN - Walter 6955646

Walter

CCGT09T308-FN2 WNN10 Carbide Insert, Grade WNN10, TiAlN - Walter 6955646

MFR# 6955646ISO/ANSI# CCGT3(2.5)2-FN2 WNN10Series CCGT-FN2

$24.76List $31.76 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond 80
GradeWNN10
MaterialCarbide
CoatingTiAlN

Description

The Walter 6955646 is a CCGT09T308-FN2 WNN10 carbide indexable insert, grade WNN10, TiAlN coated. Suited for non-ferrous metal.

Specifications

Chip breakerFN2
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1730
Included angle80
Industry standard numberCCGT3(2.5)2-FN2 WNN10
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3810
Insert materialCarbide
Insert shapeDiamond 80
Insert size code32.52
Insert styleCCGT
Insert thickness in5/32
Iso codeCCGT09T308-FN2 WNN10
Lead angle80
Length range0.3000 - 0.4000
Manufacturers catalog number6955646
Manufacturer gradeWNN10
Material gradeN10; P01; M01
Maximum depth of cut0.3810
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle18
Relief angle7
Secondary workpiece materialSteel; Stainless Steel
StandardsANSI; ISO
Tolerance codeG
Width0.381
Wiper edgeNo
