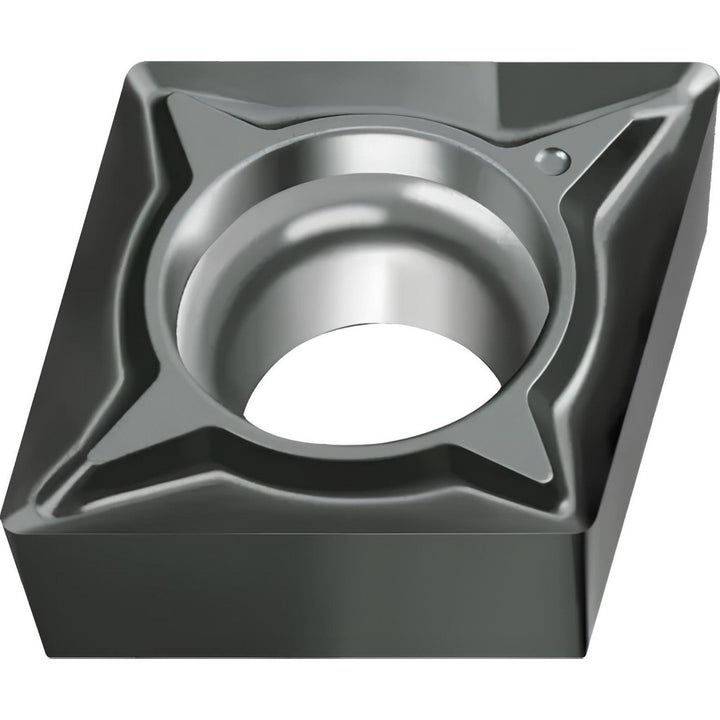

CCGT120408-FN2 WNN10 Carbide Insert, Grade WNN10, TiAlN - Walter 6955648

Walter

CCGT120408-FN2 WNN10 Carbide Insert, Grade WNN10, TiAlN - Walter 6955648

MFR# 6955648ISO/ANSI# CCGT432-FN2 WNN10Series CCGT-FN2

$24.43List $31.33 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeWNN10
MaterialCarbide
CoatingTiAlN

Description

The Walter 6955648 is a CCGT120408-FN2 WNN10 carbide indexable insert, grade WNN10, TiAlN coated. Suited for non-ferrous metal.

Specifications

Chip breakerFN2
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2170
Included angle80degree
Industry standard numberCCGT432-FN2 WNN10
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length0.5080
Insert materialCarbide
Insert shapeDiamond 80
Insert size code432
Insert styleCCGT
Insert thickness in3/16
Iso codeCCGT120408-FN2 WNN10
Lead angle80degree
Length range0.5000 - 0.6000
Manufacturers catalog number6955648
Manufacturer gradeWNN10
Material gradeN10; P01; M01
Maximum depth of cut0.5080
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle18
Relief angle7
Secondary workpiece materialSteel; Stainless Steel
StandardsANSI; ISO
Tolerance codeG
Width0.5080in
Wiper edgeNo
