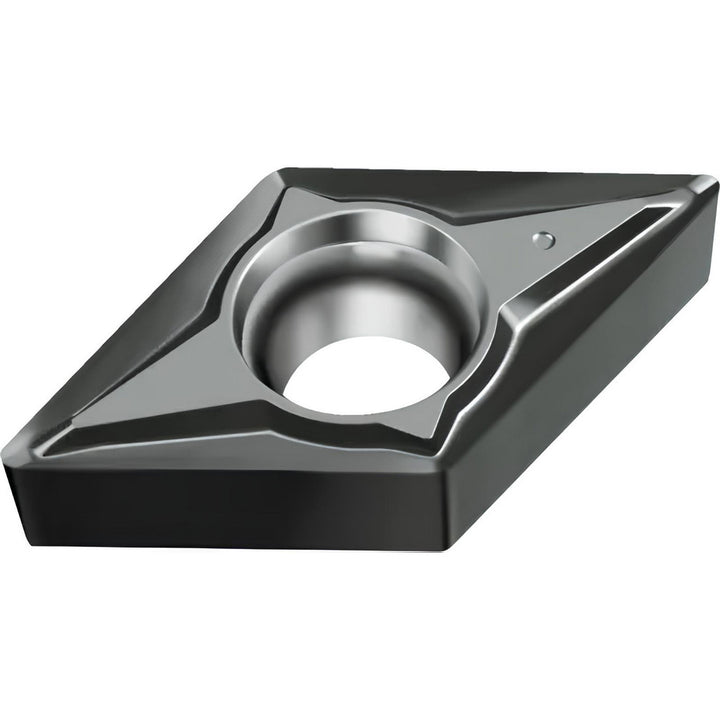

DCGT11T304-FN2 WNN10 Carbide Insert, Grade WNN10, TiAlN - Walter 6955654

Walter

DCGT11T304-FN2 WNN10 Carbide Insert, Grade WNN10, TiAlN - Walter 6955654

MFR# 6955654ISO/ANSI# DCGT3(2.5)1-FN2 WNN10Series DCGT-FN2

$24.43List $31.33 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond 55
GradeWNN10
MaterialCarbide
CoatingTiAlN

Description

The Walter 6955654 is a DCGT11T304-FN2 WNN10 carbide indexable insert, grade WNN10, TiAlN coated. Suited for non-ferrous metal.

Specifications

Chip breakerFN2
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1730
Included angle55degree
Industry standard numberDCGT3(2.5)1-FN2 WNN10
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4580
Insert materialCarbide
Insert shapeDiamond 55
Insert size code32.51
Insert styleDCGT
Insert thickness in5/32
Iso codeDCGT11T304-FN2 WNN10
Lead angle55degree
Length range0.4000 - 0.5000
Manufacturers catalog number6955654
Manufacturer gradeWNN10
Material gradeN10; P01; M01
Maximum depth of cut0.4580
Multi use applicationTurning; Facing; Boring; Back Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle18
Relief angle7
Secondary workpiece materialSteel; Stainless Steel
StandardsANSI; ISO
Tolerance codeG
Width in3/8in
Wiper edgeNo
