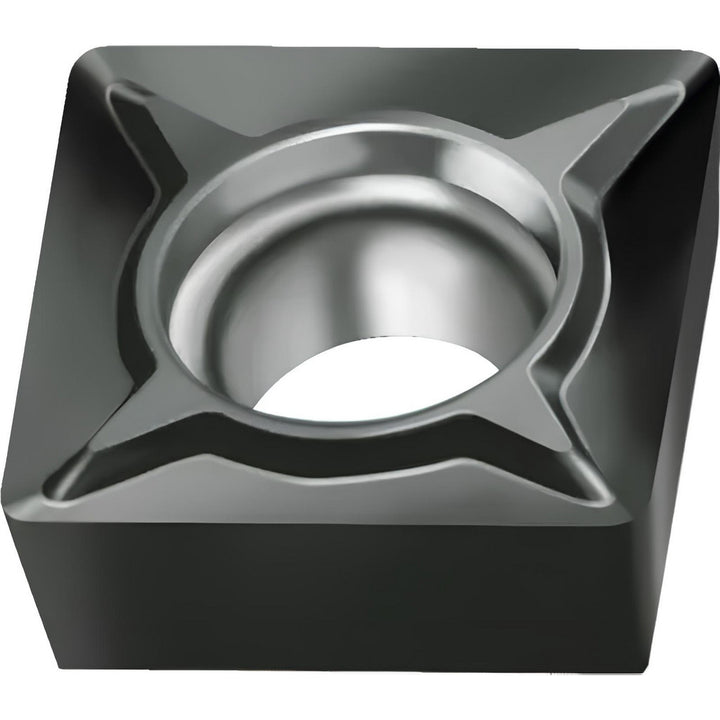

SCGT09T304-FN2 WNN10 Carbide Insert, Grade WNN10, TiAlN - Walter 6955656

Walter

SCGT09T304-FN2 WNN10 Carbide Insert, Grade WNN10, TiAlN - Walter 6955656

MFR# 6955656ISO/ANSI# SCGT09T304Series SCGT-FN2

$24.76List $31.76 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeS - Square
GradeWNN10
MaterialCarbide
CoatingTiAlN

Description

The Walter 6955656 is a SCGT09T304-FN2 WNN10 carbide indexable insert, grade WNN10, TiAlN coated. Suited for non-ferrous metal.

Specifications

Ansi insert codeSCGT32.51
Ansi size code32.51
Chip breakerFN2
Chip breaker operationFinishing
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1730
Included angle90
Industry standard numberSCGT3(2.5)1-FN2 WNN10
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length in3/8
Insert materialCarbide
Insert shapeS - Square
Insert size code32.51
Insert styleSCGT
Insert thickness in5/32
Iso codeSCGT09T304-FN2 WNN10
Iso insert codeSCGT09T304
Iso size code09T304
Lead angle90
Length range0.3000 - 0.4000
Manufacturers catalog number6955656
Manufacturer gradeWNN10
Material gradeN10; P01; M01
Maximum depth of cut0.3750
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle18
Relief angle7
Secondary workpiece materialSteel; Stainless Steel
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width in3/8
Wiper edgeNo
