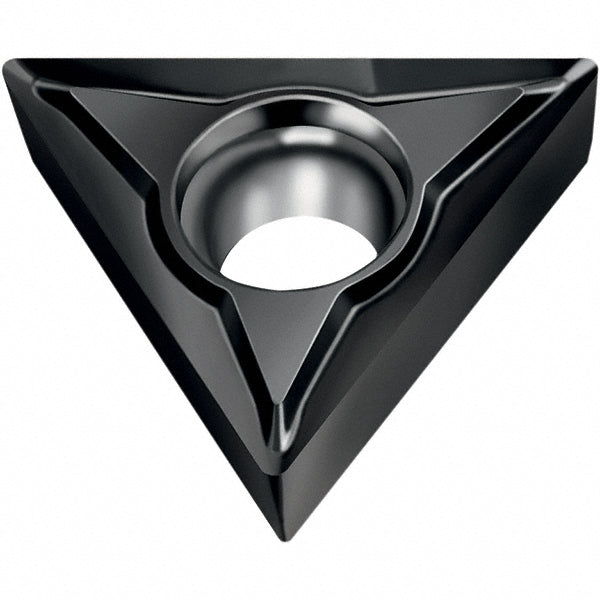

TCGT110204-FN2 WNN10 Carbide Insert, Grade WNN10, TiAlN - Walter 6955665

Walter

TCGT110204-FN2 WNN10 Carbide Insert, Grade WNN10, TiAlN - Walter 6955665

MFR# 6955665ISO/ANSI# TCGT110204Series TCGT-FN2

$20.20List $25.92 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeT - Triangle
GradeWNN10
MaterialCarbide
CoatingTiAlN

Description

The Walter 6955665 is a TCGT110204-FN2 WNN10 carbide indexable insert, grade WNN10, TiAlN coated. Suited for non-ferrous metal.

Specifications

Ansi insert codeTCGT21.51
Ansi size code21.51
Chip breakerFN2
Chip breaker operationFinishing
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1100
Included angle60
Industry standard numberTCGT2(1.5)1-FN2 WNN10
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4330
Insert materialCarbide
Insert shapeT - Triangle
Insert size code21.51
Insert styleTCGT
Insert thickness in3/32
Iso codeTCGT110204-FN2 WNN10
Iso insert codeTCGT110204
Iso size code110204
Lead angle60
Length range0.4000 - 0.5000
Manufacturers catalog number6955665
Manufacturer gradeWNN10
Material gradeN10; P01; M01
Maximum depth of cut0.4230
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle18
Relief angle7
Secondary workpiece materialSteel; Stainless Steel
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width0.4330
Wiper edgeNo
