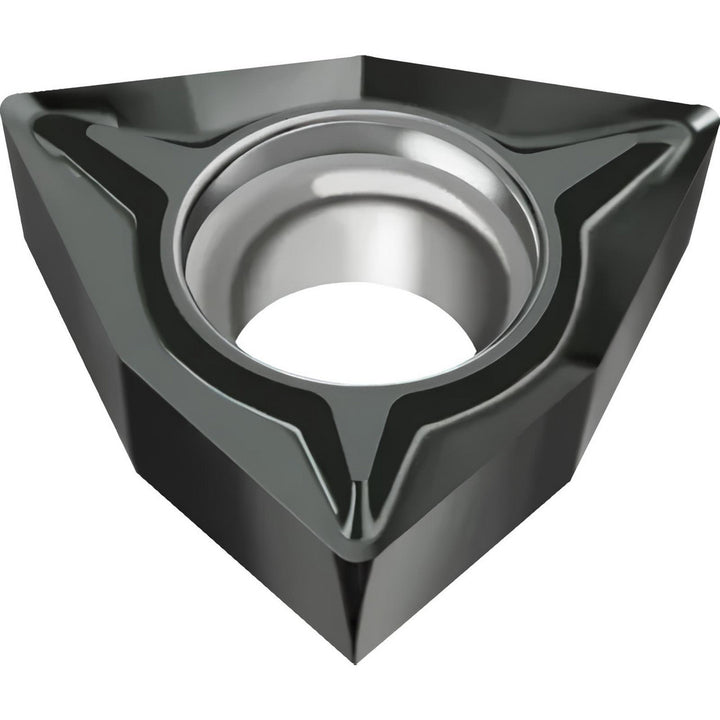

WCGT040202-FN2 WNN10 Carbide Insert, Grade WNN10, TiAlN - Walter 6955676

Walter

WCGT040202-FN2 WNN10 Carbide Insert, Grade WNN10, TiAlN - Walter 6955676

MFR# 6955676ISO/ANSI# WCGT040202Series WCGT-FN2

$22.92List $29.39 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeW - Trigon 80-Deg
GradeWNN10
MaterialCarbide
CoatingTiAlN

Description

The Walter 6955676 is a WCGT040202-FN2 WNN10 carbide indexable insert, grade WNN10, TiAlN coated. Suited for non-ferrous metal.

Specifications

Ansi insert codeWCGT21.50.5
Ansi size code21.50.5
Chip breakerFN2
Chip breaker operationFinishing
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1100
Included angle80
Industry standard numberWCGT2(1.5)0.5-FN2 WNN10
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.3420
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code21.50.5
Insert styleWCGT
Insert thickness in3/32
Iso codeWCGT040202-FN2 WNN10
Iso insert codeWCGT040202
Iso size code040202
Lead angle80
Length range0.3000 - 0.4000
Manufacturers catalog number6955676
Manufacturer gradeWNN10
Material gradeN10; P01; M01
Maximum depth of cut0.1710
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle18
Relief angle7
Secondary workpiece materialSteel; Stainless Steel
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width0.3420
Wiper edgeNo
