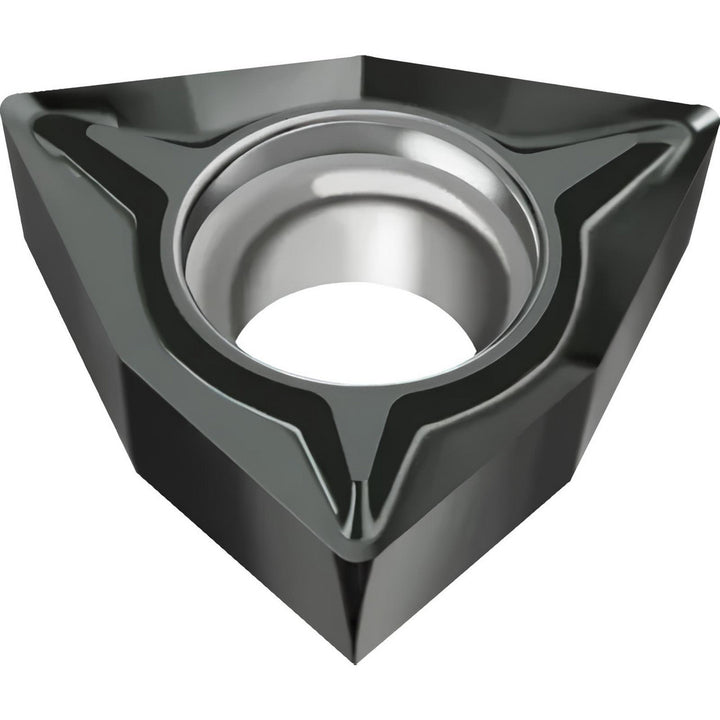

WCGT06T308-FN2 WNN10 Carbide Insert, Grade WNN10, TiAlN - Walter 6955679

Walter

WCGT06T308-FN2 WNN10 Carbide Insert, Grade WNN10, TiAlN - Walter 6955679

MFR# 6955679ISO/ANSI# WCGT3(2.5)2-FN2 WNN10Series WCGT-FN2

$23.83List $30.57 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeTrigon
GradeWNN10
MaterialCarbide
CoatingTiAlN

Description

The Walter 6955679 is a WCGT06T308-FN2 WNN10 carbide indexable insert, grade WNN10, TiAlN coated. Suited for non-ferrous metal.

Specifications

Chip breakerFN2
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1730
Included angle80degree
Industry standard numberWCGT3(2.5)2-FN2 WNN10
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.5140
Insert materialCarbide
Insert shapeTrigon
Insert size code32.52
Insert styleWCGT
Insert thickness in5/32
Iso codeWCGT06T308-FN2 WNN10
Lead angle80degree
Length range0.5000 - 0.6000
Manufacturers catalog number6955679
Manufacturer gradeWNN10
Material gradeN10; P01; M01
Maximum depth of cut0.2570
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle18
Relief angle7
Secondary workpiece materialSteel; Stainless Steel
StandardsANSI; ISO
Tolerance codeG
Width0.5140in
Wiper edgeNo
