Walter

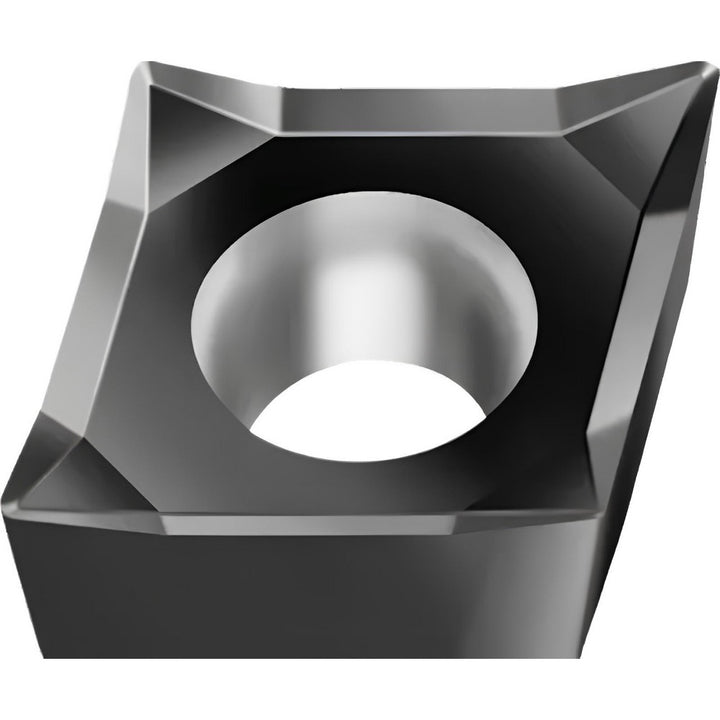

CCGT060204-MN2 WNN10 Carbide Insert, Grade WNN10, TiAlN - Walter 6955694
MFR# 6955694ISO/ANSI# CCGT060204Series CCGT-MN2
$21.22List $27.22
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeWNN10
MaterialCarbide
CoatingTiAlN
Description
The Walter 6955694 is a CCGT060204-MN2 WNN10 carbide indexable insert, grade WNN10, TiAlN coated. Suited for non-ferrous metal.
Specifications
Ansi insert codeCCGT21.51
Ansi size code21.51
Chip breakerMN2
Chip breaker operationRoughing; Medium Machining
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1100
Included angle80
Industry standard numberCCGT2(1.5)1-MN2 WNN10
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2540
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code21.51
Insert styleCCGT
Insert thickness in3/32
Iso codeCCGT060204-MN2 WNN10
Iso insert codeCCGT060204
Iso size code060204
Lead angle80
Length range0.0000 - 0.3000
Manufacturers catalog number6955694
Manufacturer gradeWNN10
Material gradeN10; P01; M01
Maximum depth of cut0.2540
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle25
Relief angle7
Secondary workpiece materialSteel; Stainless Steel
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width0.2540
Wiper edgeNo
