Walter

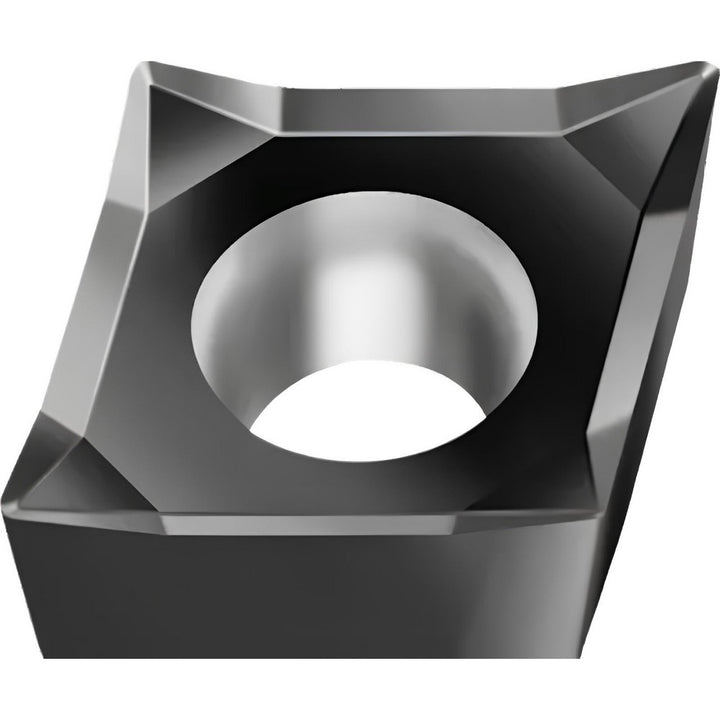

CCGT120408-MN2 WNN10 Carbide Insert, Grade WNN10, TiAlN - Walter 6955701
MFR# 6955701ISO/ANSI# CCGT432-MN2 WNN10Series CCGT-MN2
$24.43List $31.33
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeWNN10
MaterialCarbide
CoatingTiAlN
Description
The Walter 6955701 is a CCGT120408-MN2 WNN10 carbide indexable insert, grade WNN10, TiAlN coated. Suited for non-ferrous metal.
Specifications
Chip breakerMN2
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleSharp
Full radiusNo
Hole diameter0.2170
Included angle80
Industry standard numberCCGT432-MN2 WNN10
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length0.5080
Insert materialCarbide
Insert shapeDiamond
Insert size code432
Insert styleCCGT
Insert thickness in3/16
Iso codeCCGT120408-MN2 WNN10
Lead angle80
Length range0.5000 - 0.6000
Manufacturers catalog number6955701
Manufacturer gradeWNN10
Material gradeN10; P01; M01
Maximum depth of cut0.5080
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle25
Relief angle7
Secondary workpiece materialSteel; Stainless Steel
StandardsANSI; ISO
Tolerance codeG
Width0.508
Wiper edgeNo
