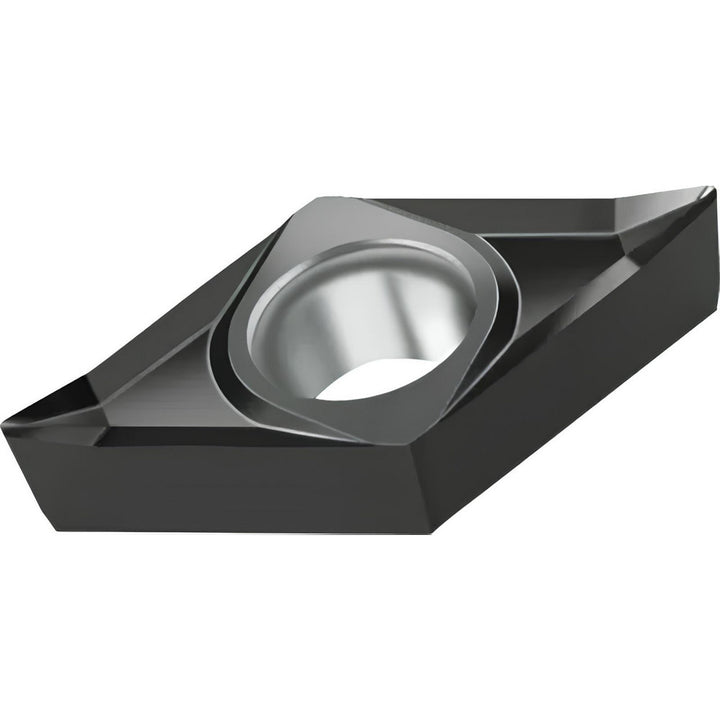

DCGT070201-MN2 WNN10 Carbide Insert, Grade WNN10, TiAlN - Walter 6955702

Walter

DCGT070201-MN2 WNN10 Carbide Insert, Grade WNN10, TiAlN - Walter 6955702

MFR# 6955702ISO/ANSI# DCGT2(1.5)0.2-MN2 WNN10Series DCGT-MN2

$20.28List $26.02 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeDiamond 55
GradeWNN10
MaterialCarbide
CoatingTiAlN

Description

The Walter 6955702 is a DCGT070201-MN2 WNN10 carbide indexable insert, grade WNN10, TiAlN coated. Suited for non-ferrous metal.

Specifications

Chip breakerMN2
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius0.0040
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1100
Included angle55degree
Industry standard numberDCGT2(1.5)0.2-MN2 WNN10
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.3050
Insert materialCarbide
Insert shapeDiamond 55
Insert size code21.50.2
Insert styleDCGT
Insert thickness in3/32
Iso codeDCGT070201-MN2 WNN10
Lead angle55degree
Length range0.3000 - 0.4000
Manufacturers catalog number6955702
Manufacturer gradeWNN10
Material gradeN10; P01; M01
Maximum depth of cut0.3050
Multi use applicationTurning; Facing; Boring; Back Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle25
Relief angle7
Secondary workpiece materialSteel; Stainless Steel
StandardsANSI; ISO
Tolerance codeG
Width in1/4in
Wiper edgeNo
