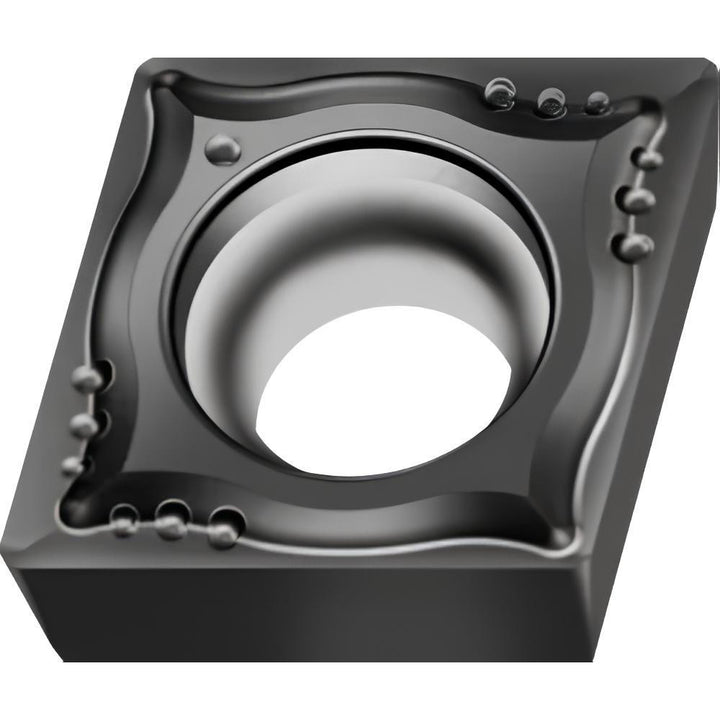

CCGT060204-MM4 WSM01 Carbide Insert, Grade WSM01, TiAlN - Walter 7021235

Walter

CCGT060204-MM4 WSM01 Carbide Insert, Grade WSM01, TiAlN - Walter 7021235

MFR# 7021235ISO/ANSI# CCGT2(1.5)1-MM4 WSM01Series CCGT-MM4

$23.65List $30.34 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeDiamond
GradeWSM01
MaterialCarbide
CoatingTiAlN

Description

The Walter 7021235 is a CCGT060204-MM4 WSM01 carbide indexable insert, grade WSM01, TiAlN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Chip breakerMM4
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1100
Included angle80
Industry standard numberCCGT2(1.5)1-MM4 WSM01
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2540
Insert materialCarbide
Insert shapeDiamond
Insert size code21.51
Insert styleCCGT
Insert thickness in3/32
Iso codeCCGT060204-MM4 WSM01
Lead angle80
Length range0.0000 - 0.3000
Manufacturers catalog number7021235
Manufacturer gradeWSM01
Material gradeM10; S10; P10; N10; H20
Maximum depth of cut0.2540
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle7
Relief angle7
Secondary workpiece materialSteel; Non-Ferrous Metal; Hard Material
StandardsANSI; ISO
Tolerance codeG
Width0.254
Wiper edgeNo
