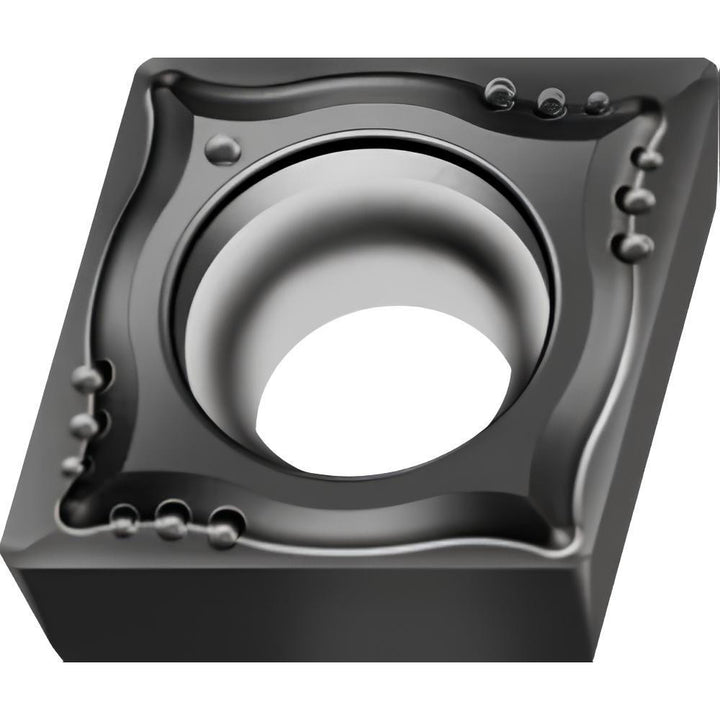

CCGT09T308-MM4 WSM01 Carbide Insert, Grade WSM01, TiAlN - Walter 7021238

Walter

CCGT09T308-MM4 WSM01 Carbide Insert, Grade WSM01, TiAlN - Walter 7021238

MFR# 7021238ISO/ANSI# CCGT3(2.5)2-MM4 WSM01Series CCGT-MM4

$27.62List $35.42 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond 80
GradeWSM01
MaterialCarbide
CoatingTiAlN

Description

The Walter 7021238 is a CCGT09T308-MM4 WSM01 carbide indexable insert, grade WSM01, TiAlN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Chip breakerMM4
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1730
Included angle80degree
Industry standard numberCCGT3(2.5)2-MM4 WSM01
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3810
Insert materialCarbide
Insert shapeDiamond 80
Insert size code32.52
Insert styleCCGT
Insert thickness in5/32
Iso codeCCGT09T308-MM4 WSM01
Lead angle80degree
Length range0.3000 - 0.4000
Manufacturers catalog number7021238
Manufacturer gradeWSM01
Material gradeM10; S10; P10; N10; H20
Maximum depth of cut0.3810
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle7
Relief angle7
Secondary workpiece materialSteel; Non-Ferrous Metal; Hard Material
StandardsANSI; ISO
Tolerance codeG
Width0.3810in
Wiper edgeNo
