Walter

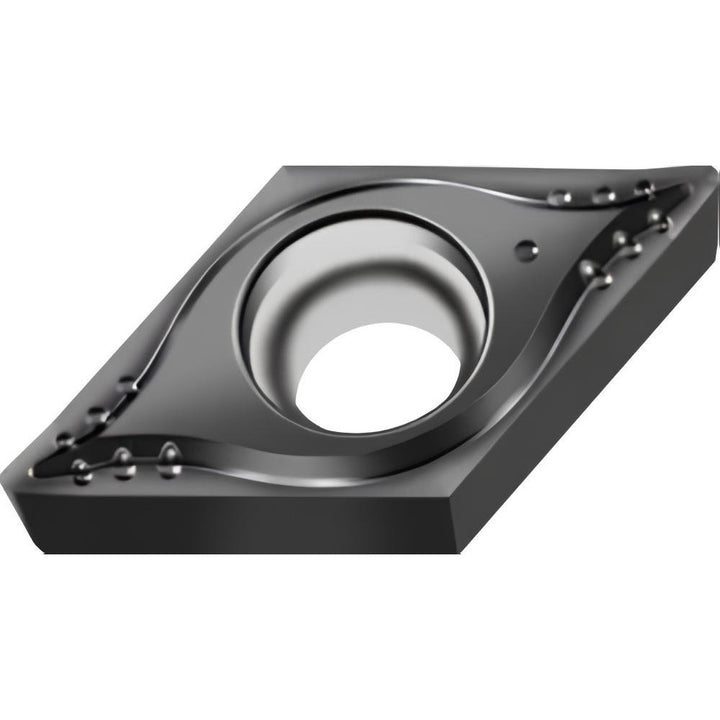

DCGT11T304-MM4 WSM01 Carbide Insert, Grade WSM01, TiAlN - Walter 7021257
MFR# 7021257ISO/ANSI# DCGT3(2.5)1-MM4 WSM01Series DCGT-MM4
$27.20List $34.88
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeD - Diamond (Rhombic) 55-Deg
GradeWSM01
MaterialCarbide
CoatingTiAlN
Description
The Walter 7021257 is a DCGT11T304-MM4 WSM01 carbide indexable insert, grade WSM01, TiAlN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Ansi size code32.51
Chip breakerMM4
Chip breaker operationRoughing; Medium Machining
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1730
Included angle55
Industry standard numberDCGT3(2.5)1-MM4 WSM01
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4580
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code32.51
Insert styleDCGT
Insert thickness in5/32
Iso codeDCGT11T304-MM4 WSM01
Iso size code11T304
Lead angle55
Length range0.4000 - 0.5000
Manufacturers catalog number7021257
Manufacturer gradeWSM01
Material gradeM10; S10; P10; N10; H20
Maximum depth of cut0.4580
Multi use applicationTurning; Facing; Boring; Back Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle7
Relief angle7
Secondary workpiece materialSteel; Non-Ferrous Metal; Hard Material
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width in3/8
Wiper edgeNo
