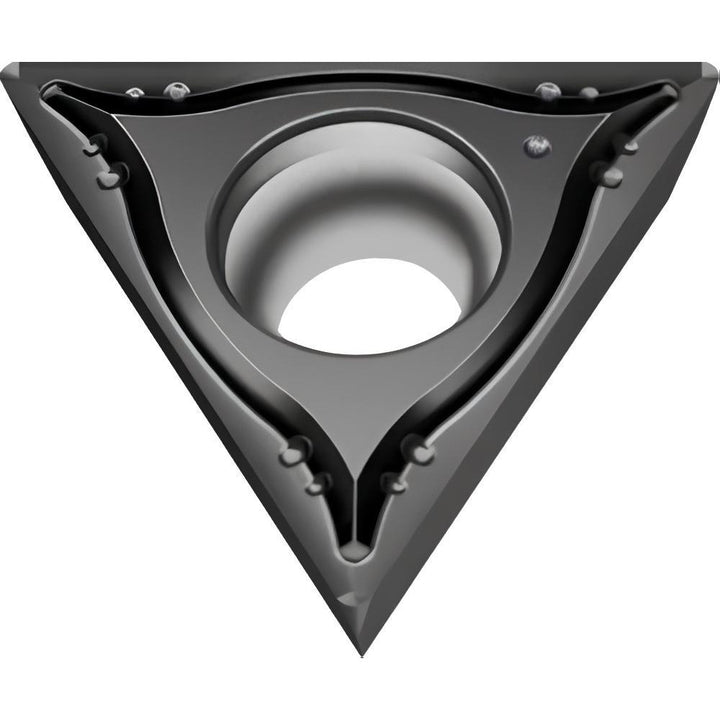

TPGT110204-MM4 WSM01 Carbide Insert, Grade WSM01, TiAlN - Walter 7021267

Walter

TPGT110204-MM4 WSM01 Carbide Insert, Grade WSM01, TiAlN - Walter 7021267

MFR# 7021267ISO/ANSI# TPGT2(1.5)1-MM4 WSM01Series TPGT-MM4

$24.42List $31.32 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeTriangle
GradeWSM01
MaterialCarbide
CoatingTiAlN

Description

The Walter 7021267 is a TPGT110204-MM4 WSM01 carbide indexable insert, grade WSM01, TiAlN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Chip breakerMM4
Clearance codeP
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1100
Included angle60degree
Industry standard numberTPGT2(1.5)1-MM4 WSM01
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4330
Insert materialCarbide
Insert shapeTriangle
Insert size code21.51
Insert styleTPGT
Insert thickness in3/32
Iso codeTPGT110204-MM4 WSM01
Lead angle60degree
Length range0.4000 - 0.5000
Manufacturers catalog number7021267
Manufacturer gradeWSM01
Material gradeM10; S10; P10; N10; H20
Maximum depth of cut0.4330
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle7
Relief angle11
Secondary workpiece materialSteel; Non-Ferrous Metal; Hard Material
StandardsANSI; ISO
Tolerance codeG
Width0.4330in
Wiper edgeNo
