Walter

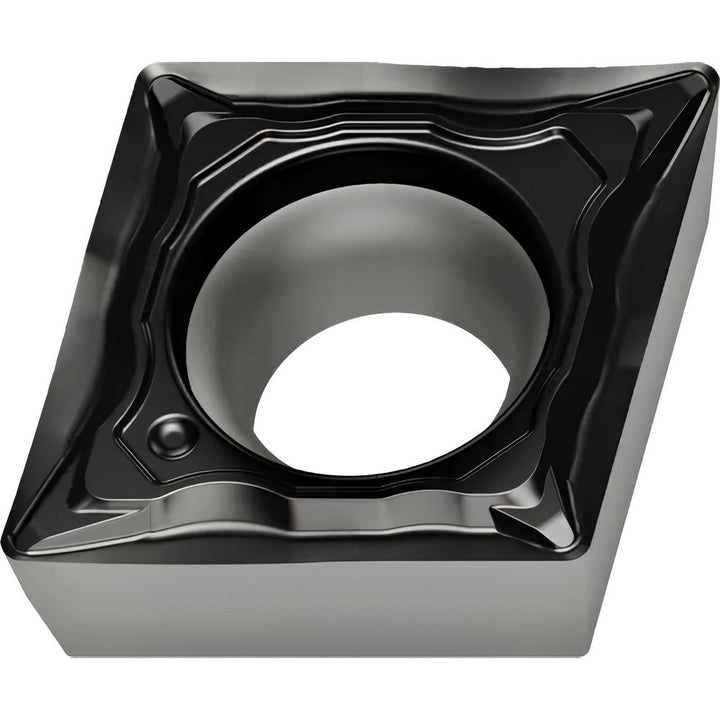

CPMT060204-FM4 WSM20S Carbide Insert, Grade WSM20S, TiCN - Walter 7021339
MFR# 7021339ISO/ANSI# CPMT060204Series CPMT-FM4
$12.80List $16.42
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeWSM20S
MaterialCarbide
CoatingTiCN
Description
The Walter 7021339 is a CPMT060204-FM4 WSM20S carbide indexable insert, grade WSM20S, TiCN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Ansi insert codeCPMT21.51
Ansi size code21.51
Chip breakerFM4
Chip breaker operationFinishing
Clearance codeP
Coating finishTiCN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1100
Included angle80
Industry standard numberCPMT2(1.5)1-FM4 WSM20S
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2540
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code21.51
Insert styleCPMT
Insert thickness in3/32
Iso codeCPMT060204-FM4 WSM20S
Iso insert codeCPMT060204
Iso size code060204
Lead angle80
Length range0.0000 - 0.3000
Manufacturers catalog number7021339
Manufacturer gradeWSM20S
Material gradeM20; S20; P20
Maximum depth of cut0.2540
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle6
Relief angle11
Secondary workpiece materialSteel
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width0.2540
Wiper edgeNo
