Walter

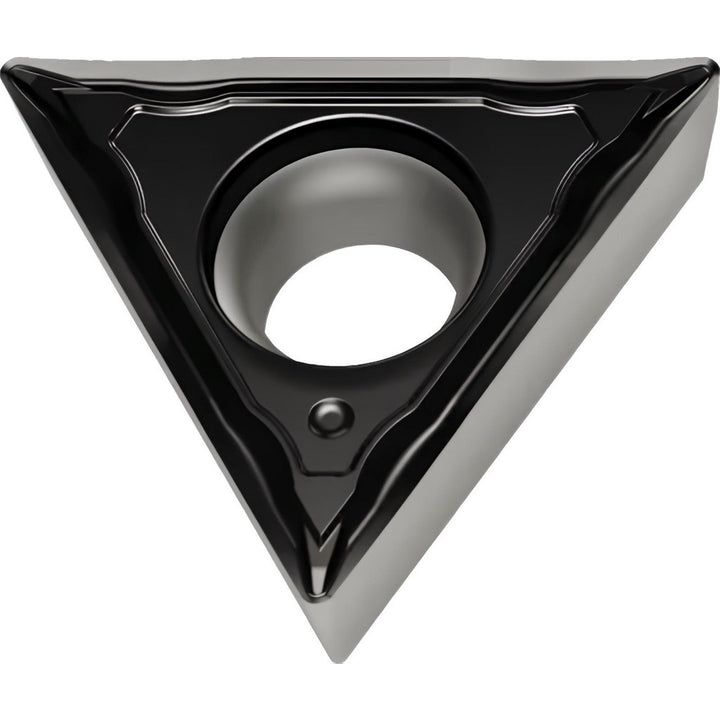

TPMT110204-FM4 WMP20S Carbide Insert, Grade WMP20S, TiCN - Walter 7021370
MFR# 7021370ISO/ANSI# TPMT2(1.5)1-FM4 WMP20SSeries TPMT-FM4
$13.05List $16.74
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeWMP20S
MaterialCarbide
CoatingTiCN
Description
The Walter 7021370 is a TPMT110204-FM4 WMP20S carbide indexable insert, grade WMP20S, TiCN coated. Suited for steel, stainless steel.
Specifications
Chip breakerFM4
Clearance codeP
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1100
Included angle60
Industry standard numberTPMT2(1.5)1-FM4 WMP20S
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4330
Insert materialCarbide
Insert shapeTriangle
Insert size code21.51
Insert styleTPMT
Insert thickness in3/32
Iso codeTPMT110204-FM4 WMP20S
Lead angle60
Length range0.4000 - 0.5000
Manufacturers catalog number7021370
Manufacturer gradeWMP20S
Material gradeM20; P25; S20
Maximum depth of cut0.4330
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel
RakePositive
Rake angle6
Relief angle11
Secondary workpiece materialSuper-alloys & Titanium
StandardsANSI; ISO
Tolerance codeM
Width0.433
Wiper edgeNo
