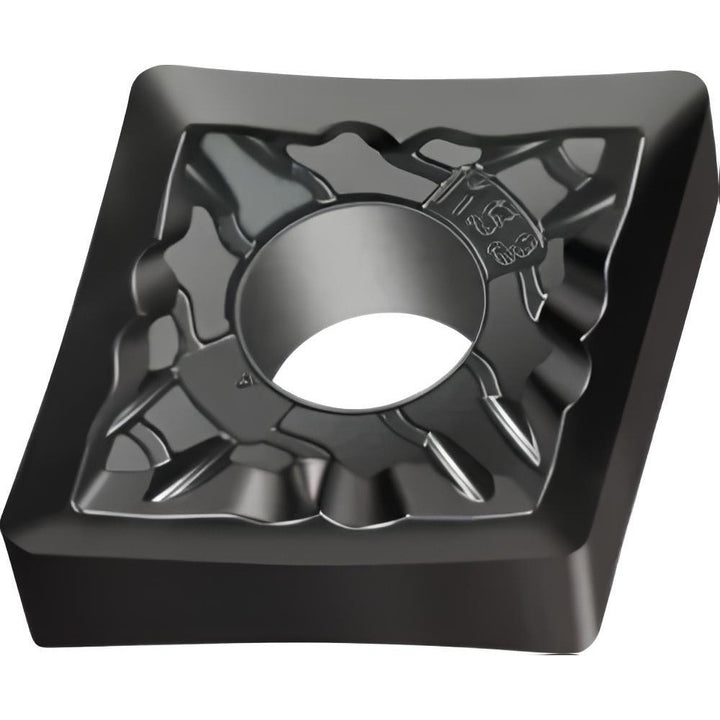

CNGG120401-MS3 WSM01 Carbide Insert, Grade WSM01, TiAlN - Walter 7021455

Walter

CNGG120401-MS3 WSM01 Carbide Insert, Grade WSM01, TiAlN - Walter 7021455

MFR# 7021455ISO/ANSI# CNGG4(3)0.2-MS3 WSM01Series CNGG-MS3

$28.46List $36.50 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeWSM01
MaterialCarbide
CoatingTiAlN

Description

The Walter 7021455 is a CNGG120401-MS3 WSM01 carbide indexable insert, grade WSM01, TiAlN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Chip breakerMS3
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius0.0040
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2030
Included angle80degree
Industry standard numberCNGG4(3)0.2-MS3 WSM01
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialCarbide
Insert shapeDiamond 80
Insert size code430.2
Insert styleCNGG
Insert thickness in3/16
Iso codeCNGG120401-MS3 WSM01
Lead angle80degree
Length range0.5000 - 0.6000
Manufacturers catalog number7021455
Manufacturer gradeWSM01
Material gradeM10; S10; P10; N10; H20
Maximum depth of cut0.5080
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakeNegative
Rake angle13
Relief angle0
Secondary workpiece materialSteel; Non-Ferrous Metal; Hard Material
StandardsANSI; ISO
Tolerance codeG
Width0.5080in
Wiper edgeNo
