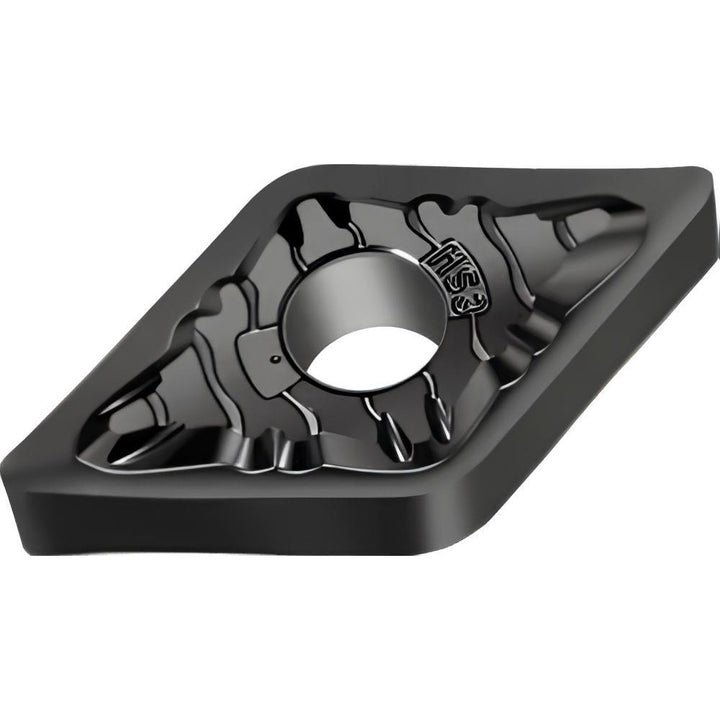

DNGG150404-MS3 WSM01 Carbide Insert, Grade WSM01, TiAlN - Walter 7021460

Walter

DNGG150404-MS3 WSM01 Carbide Insert, Grade WSM01, TiAlN - Walter 7021460

MFR# 7021460ISO/ANSI# DNGG431-MS3 WSM01Series DNGG-MS3

$36.21List $46.43 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond
GradeWSM01
MaterialCarbide
CoatingTiAlN

Description

The Walter 7021460 is a DNGG150404-MS3 WSM01 carbide indexable insert, grade WSM01, TiAlN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Chip breakerMS3
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2030
Included angle55
Industry standard numberDNGG431-MS3 WSM01
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6104
Insert materialCarbide
Insert shapeDiamond
Insert size code431
Insert styleDNGG
Insert thickness in3/16
Iso codeDNGG150404-MS3 WSM01
Lead angle55
Length range0.6000 - 0.6500
Manufacturers catalog number7021460
Manufacturer gradeWSM01
Material gradeM10; S10; P10; N10; H20
Maximum depth of cut0.6100
Multi use applicationTurning; Facing; Boring; Back Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakeNegative
Rake angle13
Relief angle0
Secondary workpiece materialSteel; Non-Ferrous Metal; Hard Material
StandardsANSI; ISO
Tolerance codeG
Width in1/2
Wiper edgeNo
