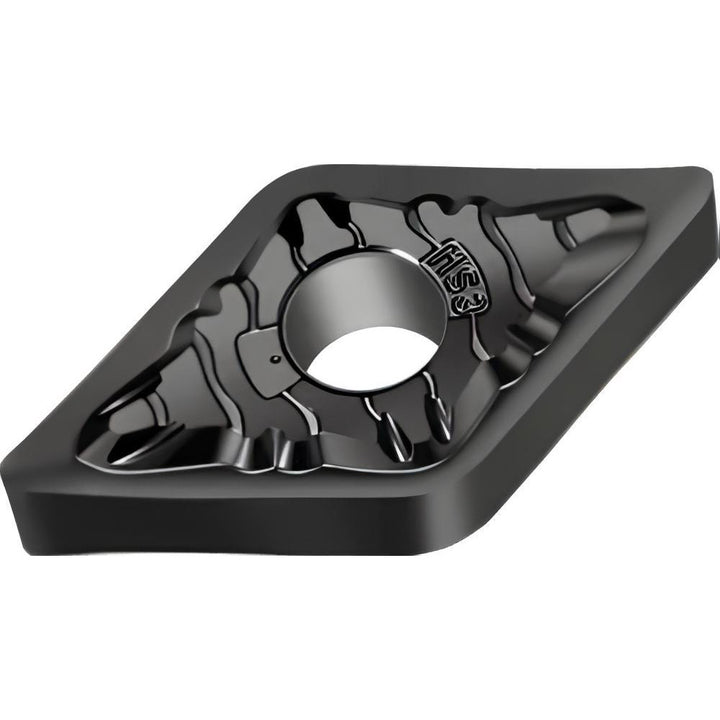

DNGG150408-MS3 WSM01 Carbide Insert, Grade WSM01, TiAlN - Walter 7021461

Walter

DNGG150408-MS3 WSM01 Carbide Insert, Grade WSM01, TiAlN - Walter 7021461

MFR# 7021461ISO/ANSI# DNGG150408Series DNGG-MS3

$36.21List $46.43 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
GradeWSM01
MaterialCarbide
CoatingTiAlN

Description

The Walter 7021461 is a DNGG150408-MS3 WSM01 carbide indexable insert, grade WSM01, TiAlN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Ansi insert codeDNGG432
Ansi size code432
Chip breakerMS3
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2030
Included angle55
Industry standard numberDNGG432-MS3 WSM01
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6104
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code432
Insert styleDNGG
Insert thickness in3/16
Iso codeDNGG150408-MS3 WSM01
Iso insert codeDNGG150408
Iso size code150408
Lead angle55
Length range0.6000 - 0.6500
Manufacturers catalog number7021461
Manufacturer gradeWSM01
Material gradeM10; S10; P10; N10; H20
Maximum depth of cut0.6100
Multi use applicationTurning; Facing; Boring; Back Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakeNegative
Rake angle13
Relief angle0
Secondary workpiece materialSteel; Non-Ferrous Metal; Hard Material
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeG
Width in1/2
Wiper edgeNo
