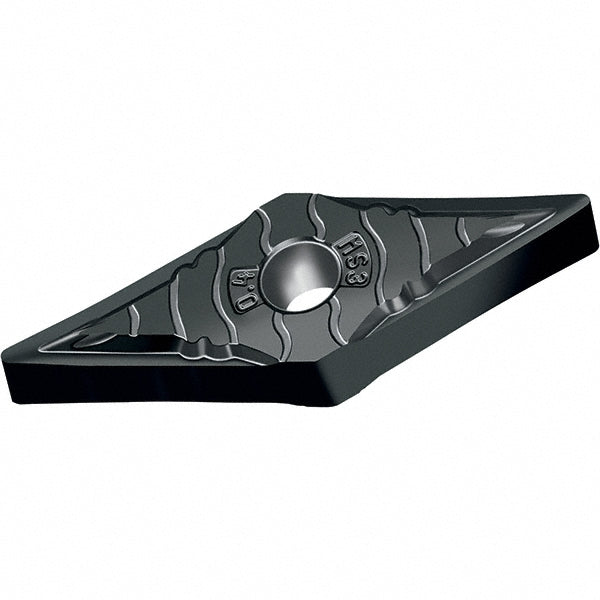

VNGG160401-MS3 WSM01 Carbide Insert, Grade WSM01, TiAlN - Walter 7021462

Walter

VNGG160401-MS3 WSM01 Carbide Insert, Grade WSM01, TiAlN - Walter 7021462

MFR# 7021462ISO/ANSI# VNGG3(3)0.2-MS3 WSM01Series VNGG-MS3

$52.04List $66.74 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond 35
GradeWSM01
MaterialCarbide
CoatingTiAlN

Description

The Walter 7021462 is a VNGG160401-MS3 WSM01 carbide indexable insert, grade WSM01, TiAlN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Chip breakerMS3
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius0.0040
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1500
Included angle35degree
Industry standard numberVNGG3(3)0.2-MS3 WSM01
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6540
Insert materialCarbide
Insert shapeDiamond 35
Insert size code330.2
Insert styleVNGG
Insert thickness in3/16
Iso codeVNGG160401-MS3 WSM01
Lead angle35degree
Length range0.6500 - 0.7000
Manufacturers catalog number7021462
Manufacturer gradeWSM01
Material gradeM10; S10; P10; N10; H20
Maximum depth of cut0.6540
Multi use applicationTurning; Facing; Boring; Back Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakeNegative
Rake angle13
Relief angle0
Secondary workpiece materialSteel; Non-Ferrous Metal; Hard Material
StandardsANSI; ISO
Tolerance codeG
Width in3/8in
Wiper edgeNo
