Walter

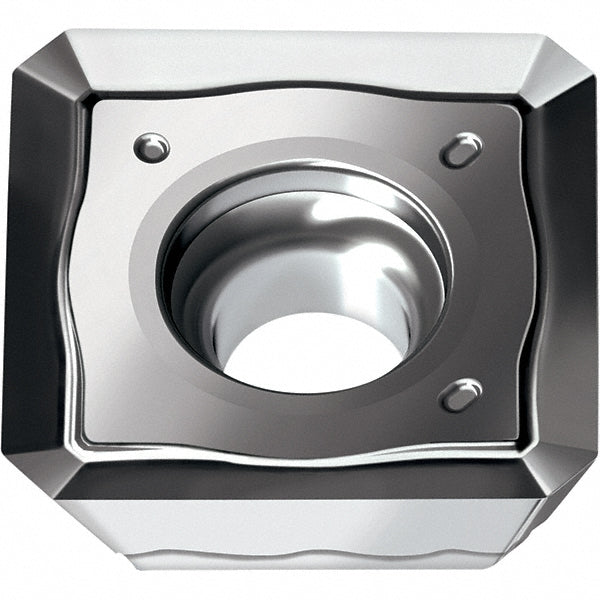

SDHT1204AZN-G88 WK10 Solid Carbide Insert, Grade WK10 - Walter 7021690
MFR# 7021690ISO/ANSI# SDHT1204AZN-G88 WK10Cat# SDHT1204AZN-G88Series SDHT
$25.93List $33.26
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeWK10
MaterialSolid Carbide
Description
The Walter 7021690 is a SDHT1204AZN-G88 WK10 solid carbide indexable insert, grade WK10. Suited for non-ferrous metal.
Specifications
Ansi codeSDHT1204AZN-G88 WK10
Chip breakerG88
Coating processUncoated
Corner radius0.0120
Cutter series compatibilityM4000
Cutting edge styleSharp
Hole diameter0.1728
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code1204
Insert styleSDHT
Iso codeSDHT1204AZN-G88 WK10
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSDHT1204AZN-G88
Manufacturer gradeWK10
Material applicationNon-Ferrous Metal
Material gradeN10
Maximum depth of cut0.5000
Multi use toolYes
Number of cutting edges4
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle20
Relief angle15
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in1/2
