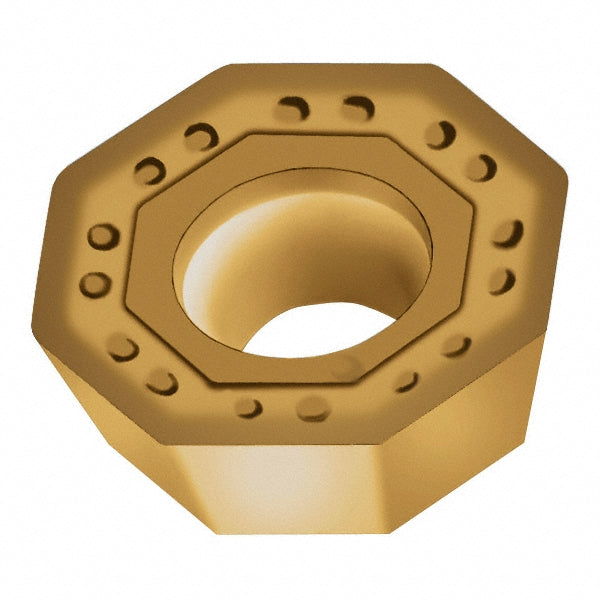

ODHT0605ZZN-F57 WKP25S Solid Carbide Insert, Grade WKP25S, TiCN - Walter 7028025
MFR# 7028025ISO/ANSI# ODHT0605ZZN-F57 WKP25SCat# ODHT0605ZZN-F57Series ODHT
$40.31List $50.80
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeOctagon
GradeWKP25S
MaterialSolid Carbide
CoatingTiCN
Description
The Walter 7028025 is a ODHT0605ZZN-F57 WKP25S solid carbide indexable insert, grade WKP25S, TiCN coated. Suited for steel, cast iron.
Specifications
Ansi codeODHT0605ZZN-F57 WKP25S
Chip breakerF57
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityF2010; M5004
Cutting edge styleChamfered; Honed
Hole diameter0.2169
Included angle degree135
Inscribed circle in5/8
Inscribed circle range0.6000 to 0.7000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size06
Insert size code0605
Insert styleODHT
Iso codeODHT0605ZZN-F57 WKP25S
Length in5/8
Length range0.6000 to 0.6500
Manufacturers catalog numberODHT0605ZZN-F57
Manufacturer gradeWKP25S
Material applicationSteel; Cast Iron
Material gradeP25; K25
Maximum depth of cut0.2590
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle16
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in7/32
Thickness range0.2000 to 0.2200
Width in5/8
